Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project

Information

  • Project Name: Form, Space, and Urbanism
  • Student Name: Wajahat Asim
  • Softwares/Plugins: AutoCAD , Autodesk Revit , SketchUp , Twinmotion , Adobe Photoshop
More Info Less Info

Excerpt: Form, Space, and Urbanism’ is a Bachelors Design Project by Wajahat Asim from the ‘School of Architecture, Design and Urbanism – IAC’ that seeks to create a walkable and inclusive urban community by drawing inspiration from Jane Jacobs and the vibrant streets of Androon Lahore. Through ramps, bridges, and staircases, it enhances accessibility while encouraging social interaction and exploration. Ultimately, it aims to foster a dynamic, connected environment that addresses social and economic challenges.

Introduction: This urban housing development takes inspiration from Jane Jacobs’ critique of conventional urban planning, emphasizing the importance of vibrant streets in fostering safe and dynamic cities. Drawing from the organic flow of pedestrian movement in the markets and neighborhoods of Androon Lahore, the design prioritizes walkability to create an engaging and lively community. It incorporates ramps, bridges, and staircases to enhance accessibility while also serving as visually striking elements that break the monotony of the built environment. These features encourage exploration and a sense of discovery among residents. Ultimately, the project seeks to address deep-rooted social and economic challenges within society.

Save

Site Context

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
This illustration shows the overall neighbouring context of the site
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
A 3-D aerial view of the site and its neighbouring features.
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
This contextual section highlights and addresses the physical and sociological gap between the elite and the marginalised.

Site Context: The project site is located along Burki Road, directly opposite the Lahore School of Economics. Covering an area of 58 acres (464 kanals), the site consists of existing agricultural land and is surrounded by open fields and small villages. The neighboring context includes residential developments such as the Defence Housing Authority (DHA), privately owned farmland, and nearby villages.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Important Features Of the Site
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Important Features Of the Site
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
These collages reflect the overall societal fabric of Pakistan.

Program: The proposed development includes residential houses and apartments, public buildings, parks, a mosque, a security center, a fire and safety center, and a graveyard. Additionally, it incorporates recreational and sports facilities, along with other miscellaneous amenities. Students working on the project have the flexibility to expand the program as needed. For further program requirements, reference should be made to the Lahore Development Authority (LDA) by-laws.

Design Process

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Abstraction of Androon Lahore

Inspired by the intimate streets, neighborhoods, and overall communal life of Androon Lahore, the design process begins with the intention of capturing the essence of Androon Lahore within this housing project. Drawing from Peter Eisenman’s process of extraction, abstraction, and reconfiguration, the initial phase involves studying the geometries of Androon Lahore. The primary contextual references include the Badshahi Masjid, the Lahore Fort, and the general street network of Lahore. These landmarks hold significant historical and cultural importance for the city. The illustration explores the abstractions of these shapes in relation to one another and their connections within the urban fabric.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project

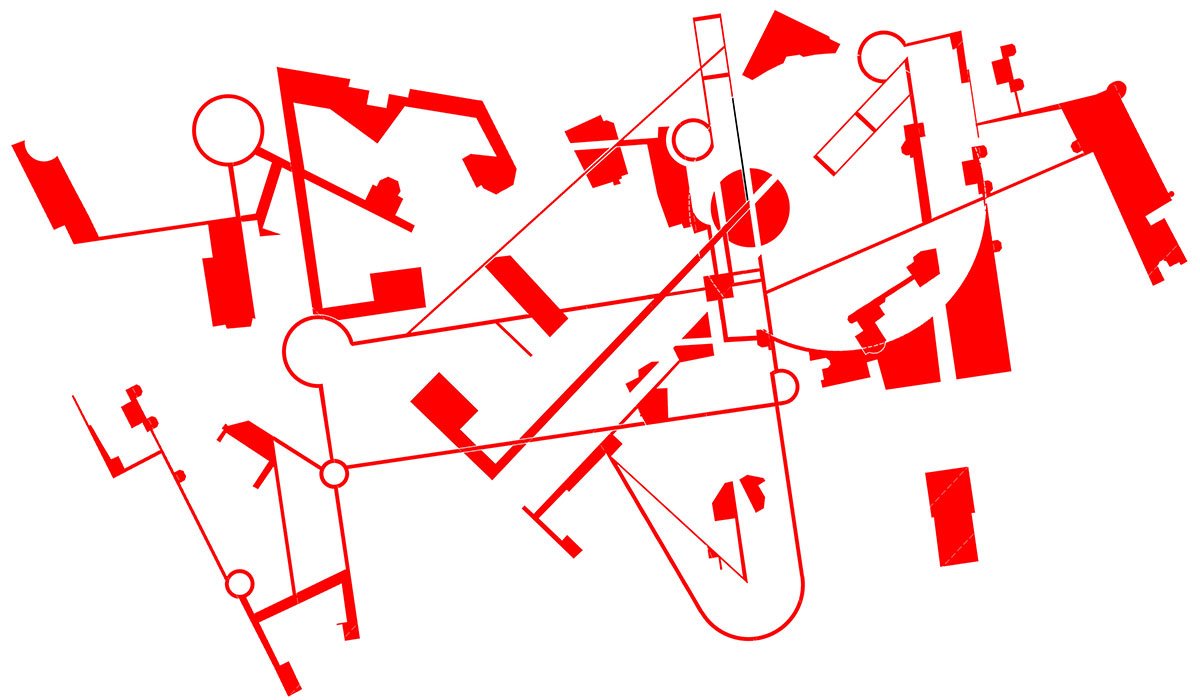

Geometric Manipulation of Abstract Shapes
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Superimposition of Shapes, Site Grid, Androon Road Network

In the next phase, these shapes are broken down into smaller fragments and reconfigured through shearing, rotating, scaling, and transforming. The modified shapes are then aligned according to a ‘contextual site grid’ system, which is generated separately. This approach ensures that the historical shapes adapt to the alignment of present-day contextual lines.

Following this alignment, the contextual site grid onto which the abstract shapes are superimposed is introduced. This grid is derived by extending the grid lines of a neighboring housing society (DHA) and overlapping them onto the site.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Regulating Lines Onto Site
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Juxtapose Onto The Site

At this stage, all elements—including the abstracted shapes in their transformed state, the road network of Androon Lahore, and the site grid—are superimposed onto the actual site. This reconfiguration generates a new architectural and urban framework, forming the foundation for the planning and design process.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Speculation of Urban Form and Space
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Speculation of Urban Form and Space
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Speculation of Urban Form and Space

The shapes are then translated into three-dimensional forms, creating a novel architectural system. Though abstract in nature, these forms generate spatial pockets that can be reimagined into architectural and urban solutions. Emerging solely from abstract reasoning, this system of architecture and urbanism is original, unpreconceived, and free from imitation. It remains authentic to its conceptual foundation.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Reimagining The Speculative Form For Realisation With An Urban Lens
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Reimagining The Speculative Form For Realisation With An Urban Lens
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Reimagining The Speculative Form For Realisation With An Urban Lens
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project

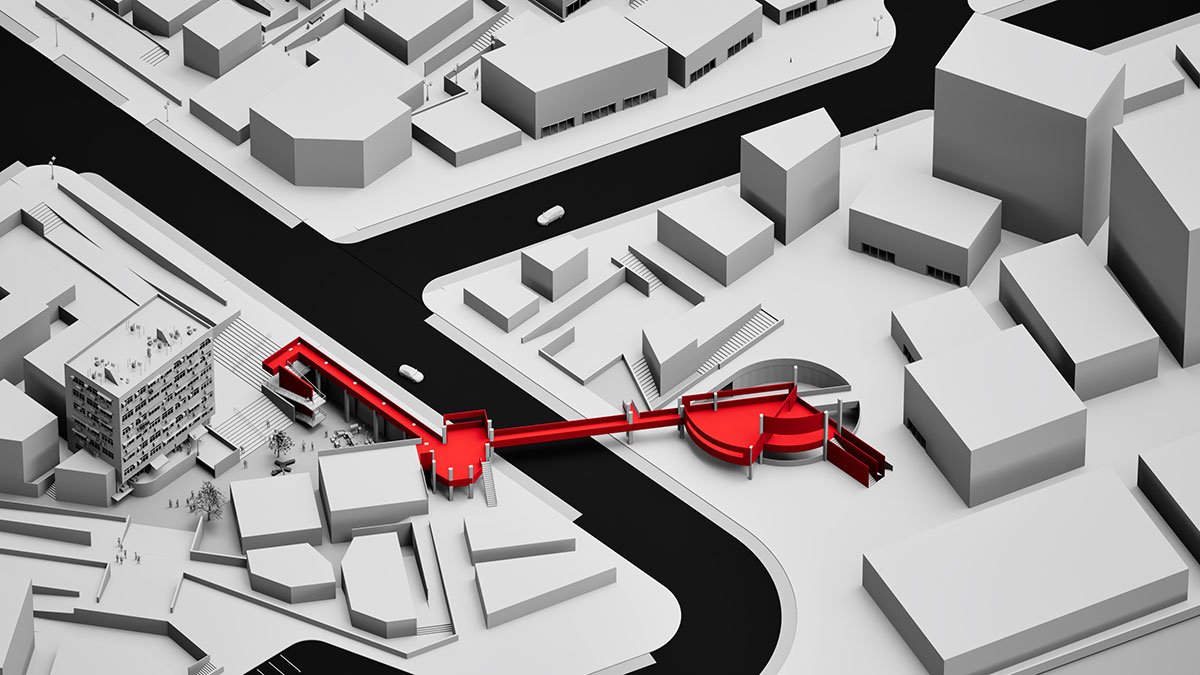

Conceptual Illustration:Eyes On The Street
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project

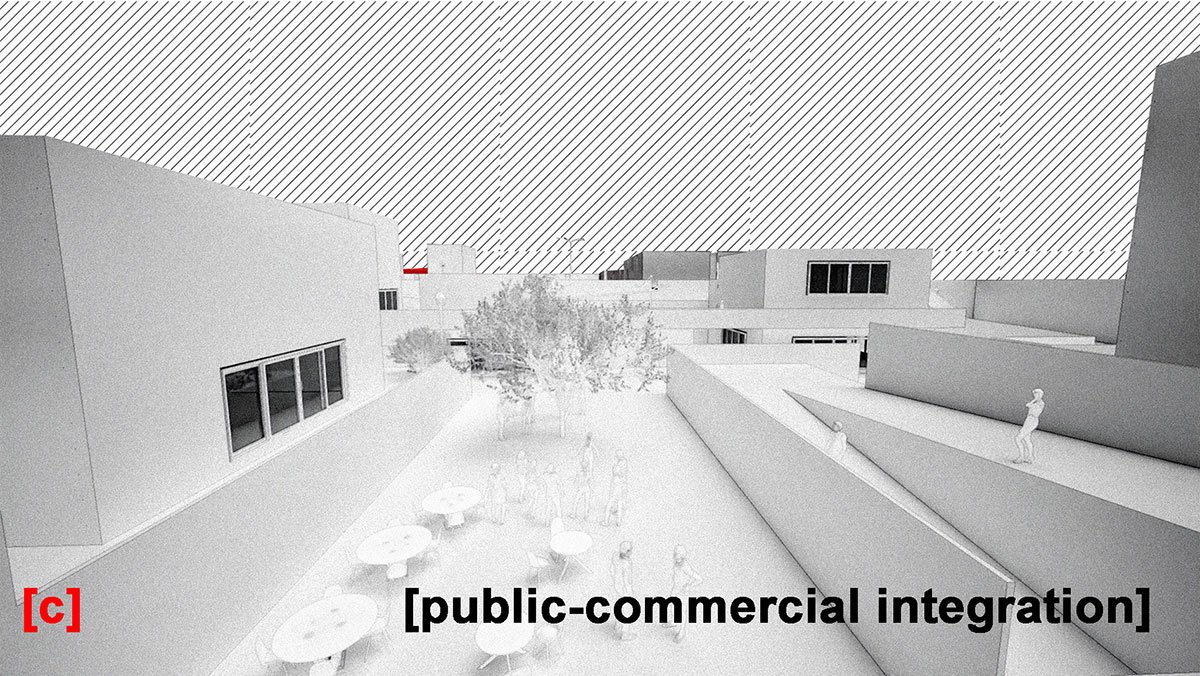

Conceptual Illustration: Mixed Development

Finally, the speculative forms undergo another phase of reconfiguration, this time with an urban lens, to facilitate their realization within a tangible urban context.

Final Outcome

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Master plan
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project

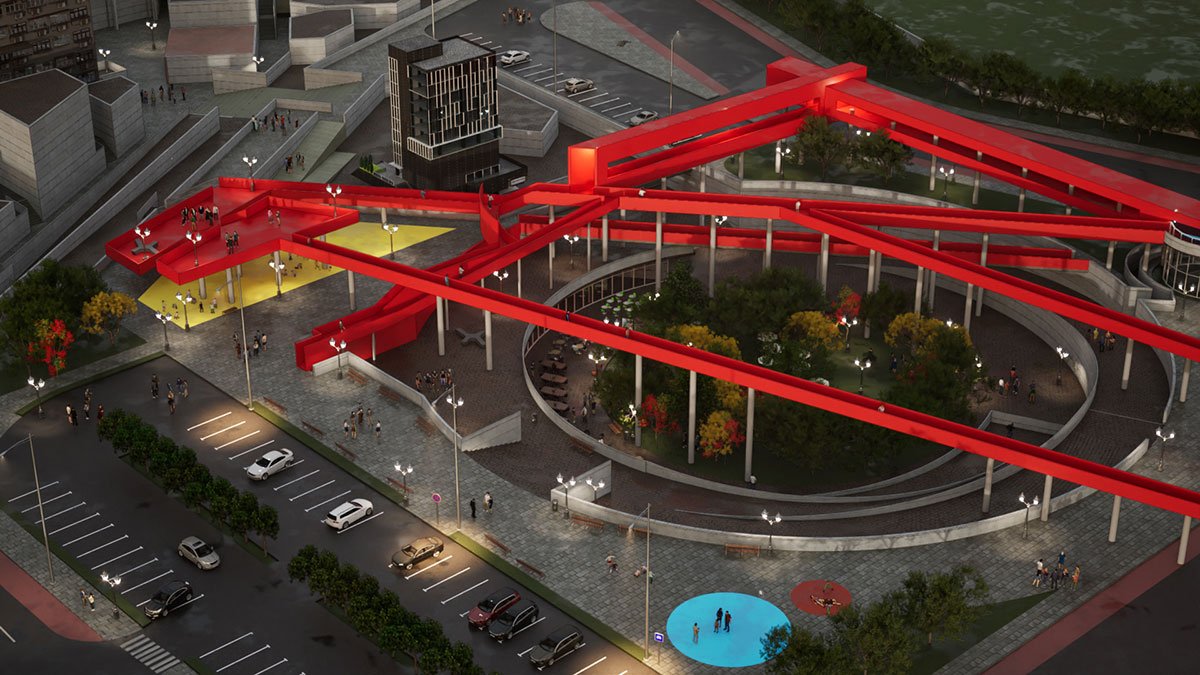

Axonometric
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project

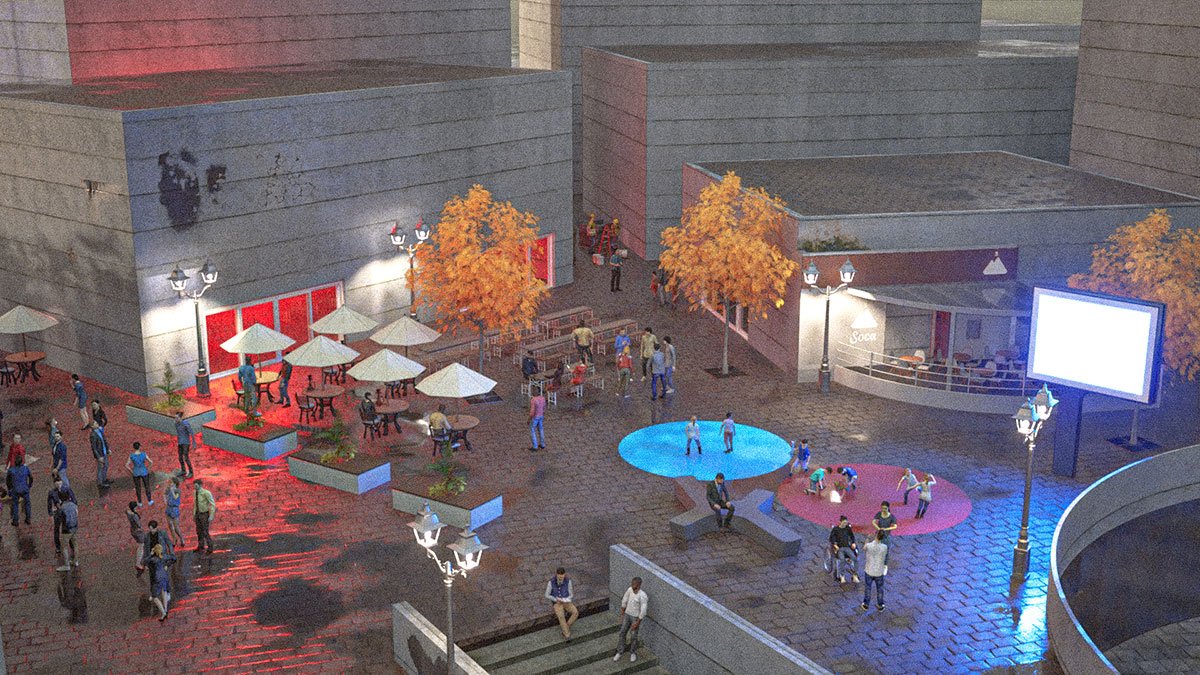

Communal Space

This design process takes inspiration from Peter Eisenman’s proposal for Hundarian’s Budapest, where he reimagines the city’s south gate as a dynamic and intricate urban form. Moving away from conventional grid or concentric layouts, his approach draws influence from Villa Adriana, establishing a planning methodology rooted in experimentation and artistic exploration. Similarly, this project follows a process-driven approach that challenges traditional planning norms, resulting in a unique and intellectually engaging architectural and urban intervention.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Section BB’
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Aerial View: 3D clay model illustrating Androon Lahore’s intimate housing arrangement, vibrant bazaars, and the transformation of abstract forms into dynamic urban spaces.
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Visuals portraying daily life, interactions, and vibrant communal activities in the society.

At its core, the design critically addresses Pakistan’s deeply entrenched societal issues, particularly the stark divide between the elite and lower classes. The elite, entrenched in a system of privilege and patronage, often operate beyond legal and social accountability. This project goes beyond merely acknowledging these disparities; it actively seeks to create spaces that foster inclusivity and enhance the quality of life for residents.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Aerial View: 3D clay model illustrating Androon Lahore’s intimate housing arrangement, vibrant bazaars, and the transformation of abstract forms into dynamic urban spaces.
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Visuals portraying daily life, interactions, and vibrant communal activities in the society.
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Farmer’s Market

Drawing inspiration from the essence of Androon Lahore and informed by Jane Jacobs’ critique of conventional urban planning, the design does not conform to rigid planning principles. Instead, it prioritizes space-making and user experience. For example, the commercial zone is envisioned as more than just a collection of shops and markets where residents engage in routine transactions. Instead, it is designed with a spatial and visual hierarchy—shops seamlessly connect to the street, which then expands into a public space that links to the main road. This hierarchy is further disrupted through split-level arrangements, fostering an interactive and dynamic commercial environment.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Aerial View: 3D clay model illustrating Androon Lahore’s intimate housing arrangement, vibrant bazaars, and the transformation of abstract forms into dynamic urban spaces.
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Visuals portraying daily life, interactions, and vibrant communal activities in the society.
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project

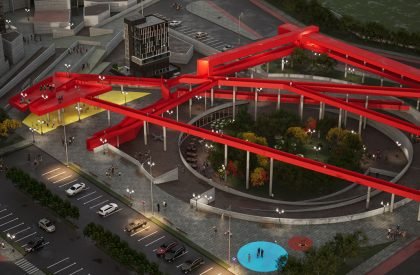

Communal Space

The project places a strong emphasis on safety and community by incorporating spatial transparency. Thoughtfully designed visual connections between shops, streets, and public spaces facilitate natural surveillance, creating a secure and welcoming environment. Communal spaces are integrated into the urban fabric in two distinct ways—either juxtaposed with ornamental bridges and ramps inspired by abstract geometries or seamlessly embedded within the cityscape. In both cases, these spaces encourage social interaction and engagement among residents.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Aerial View: 3D clay model illustrating Androon Lahore’s intimate housing arrangement, vibrant bazaars, and the transformation of abstract forms into dynamic urban spaces.
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Transition Urban Space

A conscious effort has been made to promote pedestrian-friendly spaces by minimizing the road network and reducing road widths to prioritize walking. By emphasizing pedestrian movement over vehicular access, the design cultivates a human-scaled urban experience, transforming streets into lively social spaces rather than mere passageways for cars. This approach not only improves walkability but also strengthens the sense of connection within the community.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Commercial Area

Additionally, the residential street network is designed to be as organic as possible while remaining compliant with relevant bylaws and regulations. By developing interconnected street arteries and integrating semi-public spaces within residential clusters, the design fosters vibrancy and social cohesion, ultimately creating a neighborhood that is both dynamic and safe for its residents.

Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Mixed Use
Form, Space, and Urbanism: An Urban Housing Project Inspired by Jane Jacobs Idea of Vibrant Streets & Neighborhoods of Androon Lahore | Bachelors Design Project
Urban Park

Conclusion: This project redefines urban living by prioritizing walkability, community, and spatial transparency. It challenges conventional planning, addresses societal issues, and fosters a vibrant, inclusive environment, envisioning a more connected and human-centered future.

[This Academic Project has been published with text and images submitted by the student]
