Day 3 | Introduction to Grasshopper: Excersize 2

Information

    Date: 17.06.2020

    Software used: Rhino6 , Grasshopper

    Excersize 2

    The exercise was to create a panel from a voronoi pattern. Random points were created using Populate 2D within the boundary of a rectangle. Then voronoi curves were generated using voronoi 2d at each populated point. The curves were scaled and then extruded. The extrusion was then capped to form a closed surface. The rectangle was extruded and capped. The final outcome was then achieved by Boolean of the extrusions of voronoi and Rectangle using solid difference.

    Tools Used: Rectangle, Populate 2D, Voronoi 2d,Area,  Scale, Loft, Extrude, Solid Difference.

    Day 3 | Introduction to Grasshopper: Excersize 2

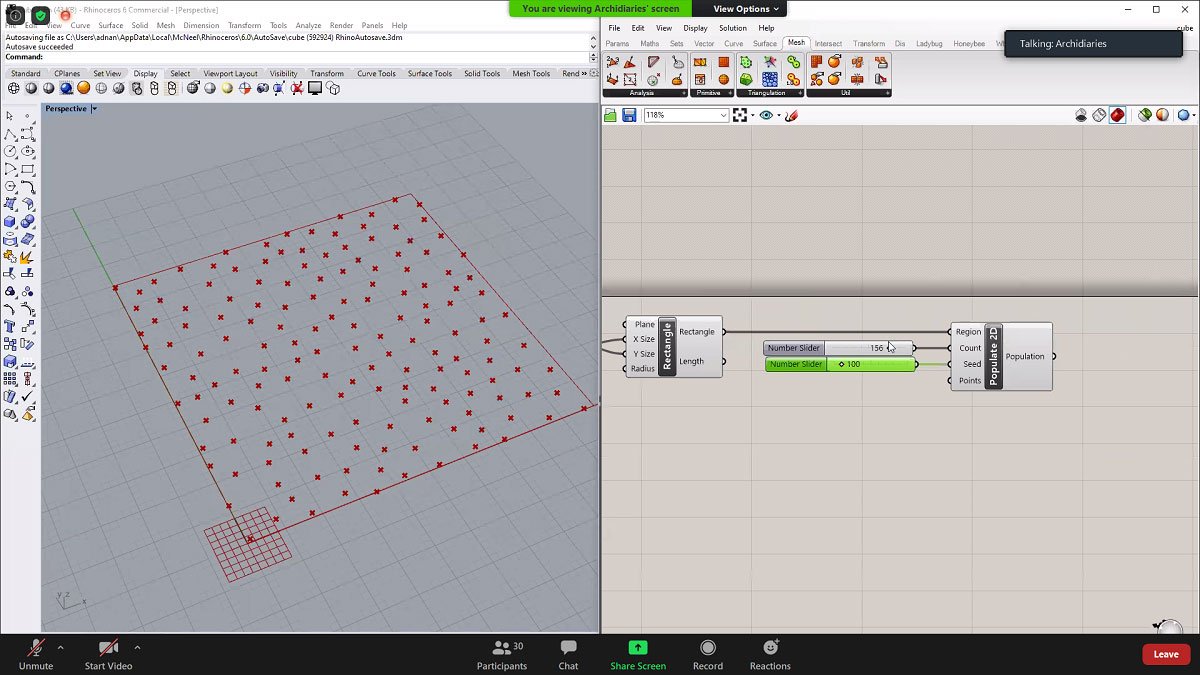

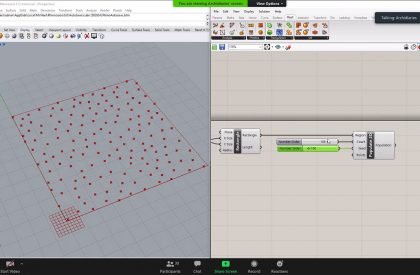

    Random Points in rectangle.
    Day 3 | Introduction to Grasshopper: Excersize 2

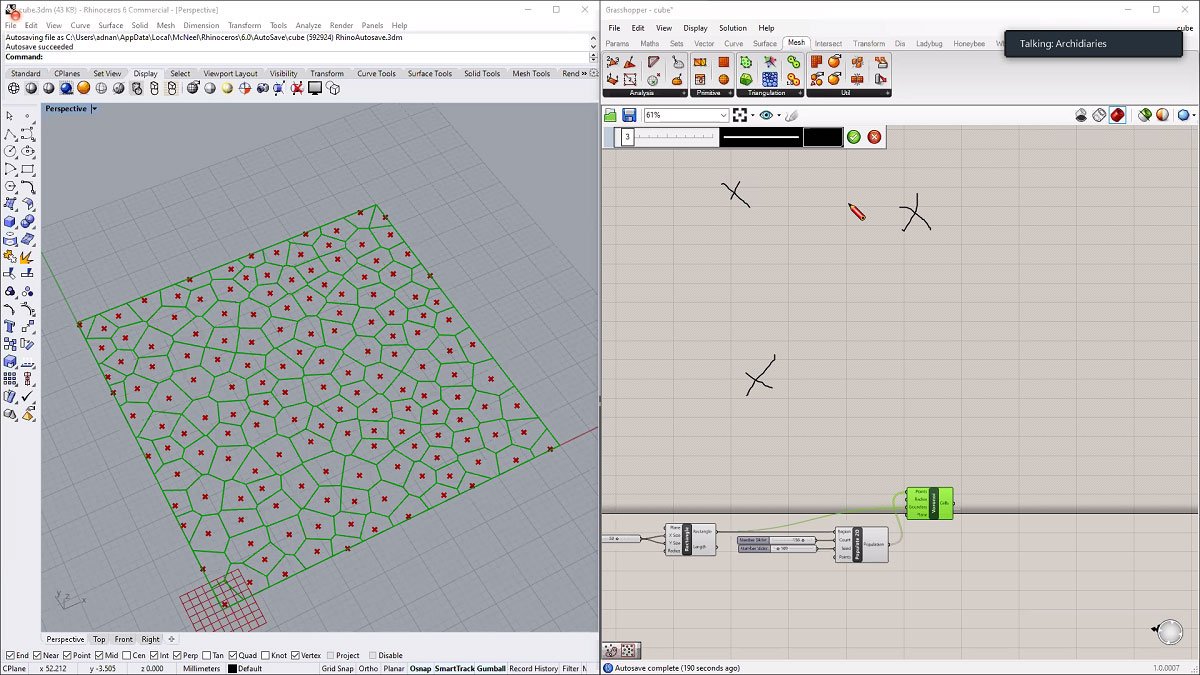

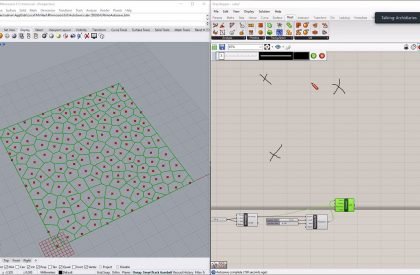

    Voronoi curves around each point.
    Day 3 | Introduction to Grasshopper: Excersize 2

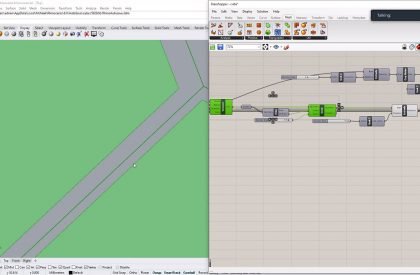

    Scaling of the voronoi curves.
    Day 3 | Introduction to Grasshopper: Excersize 2

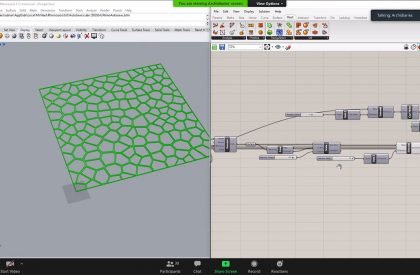

    Extrusion of the scaled voronoi curves.
    Day 3 | Introduction to Grasshopper: Excersize 2

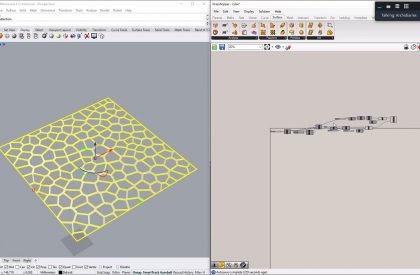

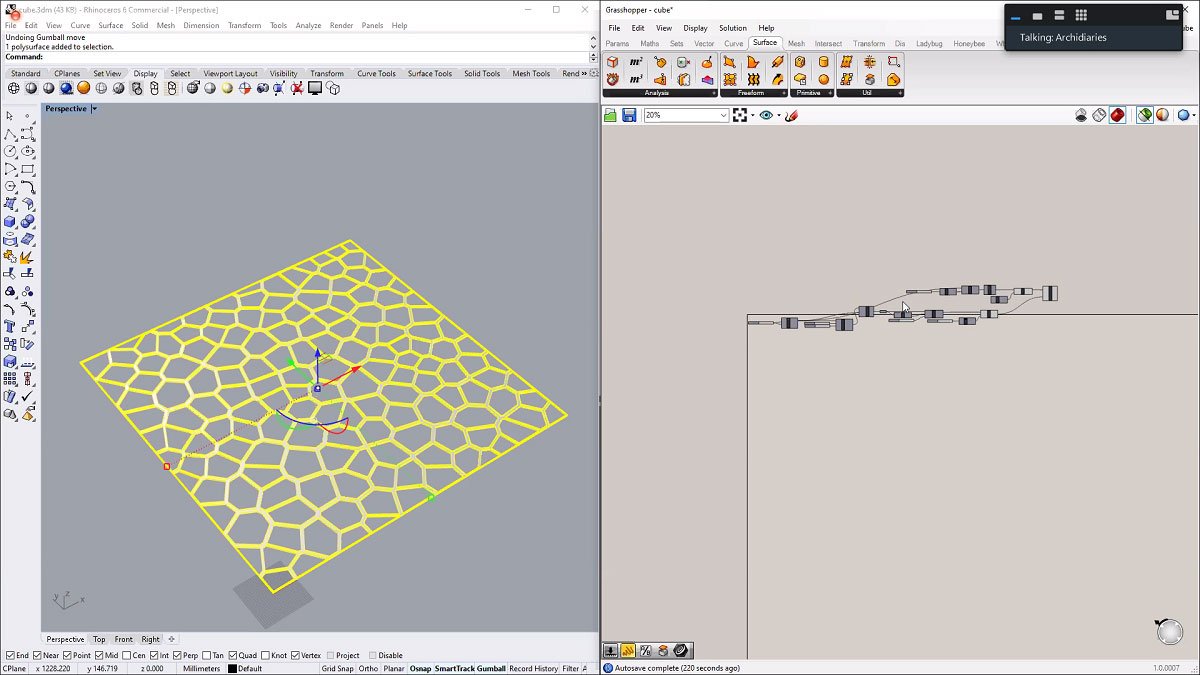

    Final outcome from the solid difference between extrusion of scaled voronoi curves and rectangle.
