CODEC Training Centre – Kuakata | Community Development Centre (CODEC)

Information

  • Completion year: 2024
  • Gross Built up Area: 11623 sqft
  • Project Location: Kuakata
  • Country: Bangladesh
  • Lead Architects/Designer: Quazi Wafiq Alam
  • Design Team: H.M Hossenur Rahman, Nowshin Matin
  • Engineering: Md. Sauban Masud, Sheikh Tanzibul Rahman
  • Photo Credits: Asif Salman
More Info Less Info

Excerpt: The Kuakata Training Center by CODEC is designed as a purpose-built facility that supports skill development and capacity building for coastal communities in Bangladesh. Rooted in sustainability and climate resilience, the design emphasizes elevated structures, passive cooling, and locally made materials. More than an institution, it is envisioned as a transformative space connecting education, environment, and community.

Project Description

CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

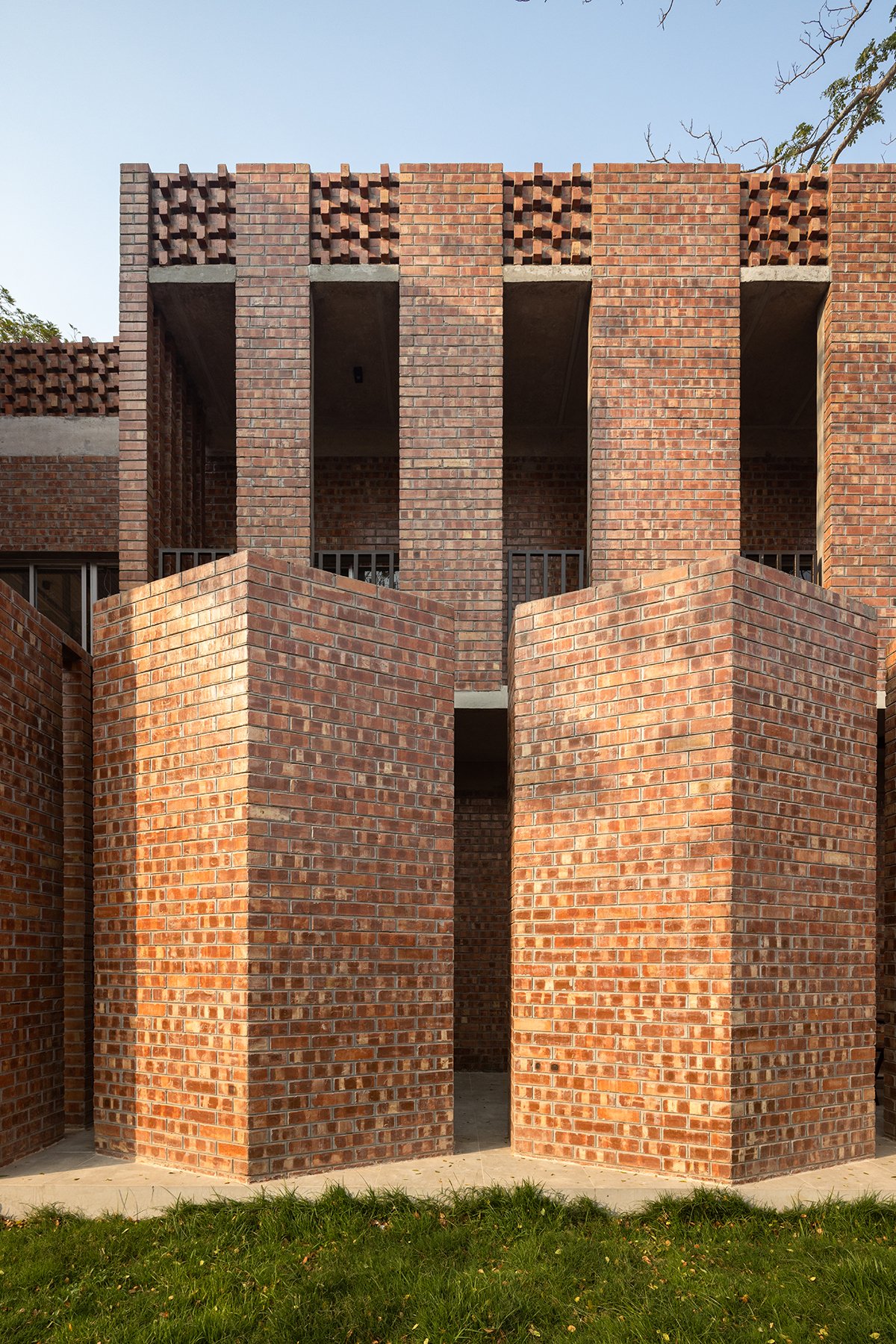

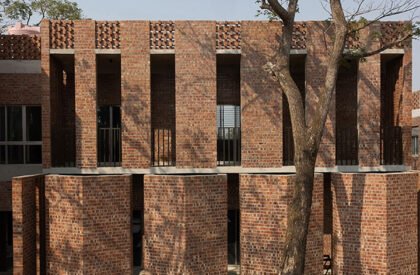

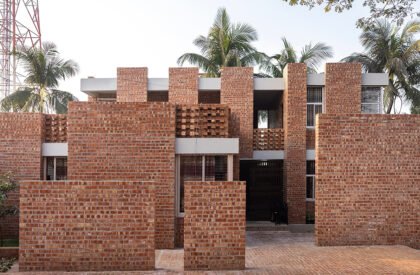

Brick walls and perforated jali screens enclose training hub © Asif Salman

[Text as submitted by architect] The Kuakata Training Center, designed by CODEC Design Studio, is a purpose-built facility supporting skill development and capacity building for coastal communities in Bangladesh. Positioned close to fishing settlements, ecological zones, and tourist routes, it offers residential training on coastal resource management, sustainable tourism, and disaster preparedness. Developed through a phased construction process, the project emphasizes quality, sustainability, and contextual relevance. Local contractors and laborers were engaged from the outset, ensuring not only construction efficiency but also skill transfer and community ownership of the center.

CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

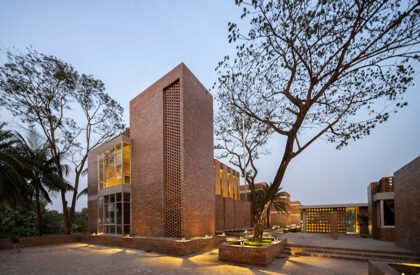

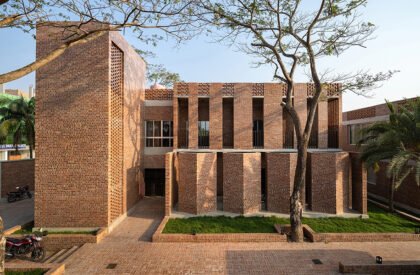

The design follows a phased construction approach to ensure quality and contextual relevance © Asif Salman
CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

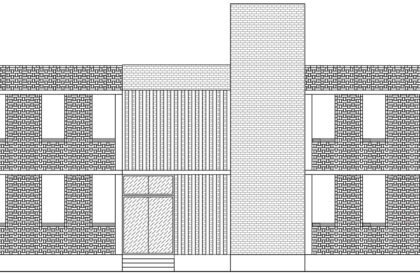

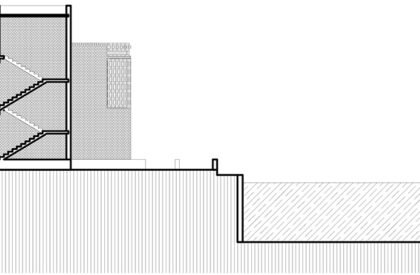

Section © Community Development Centre (CODEC)
CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

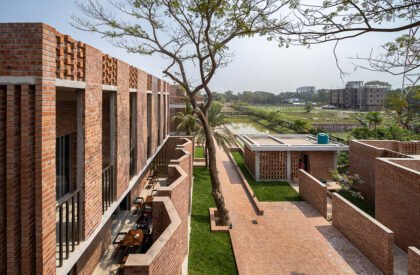

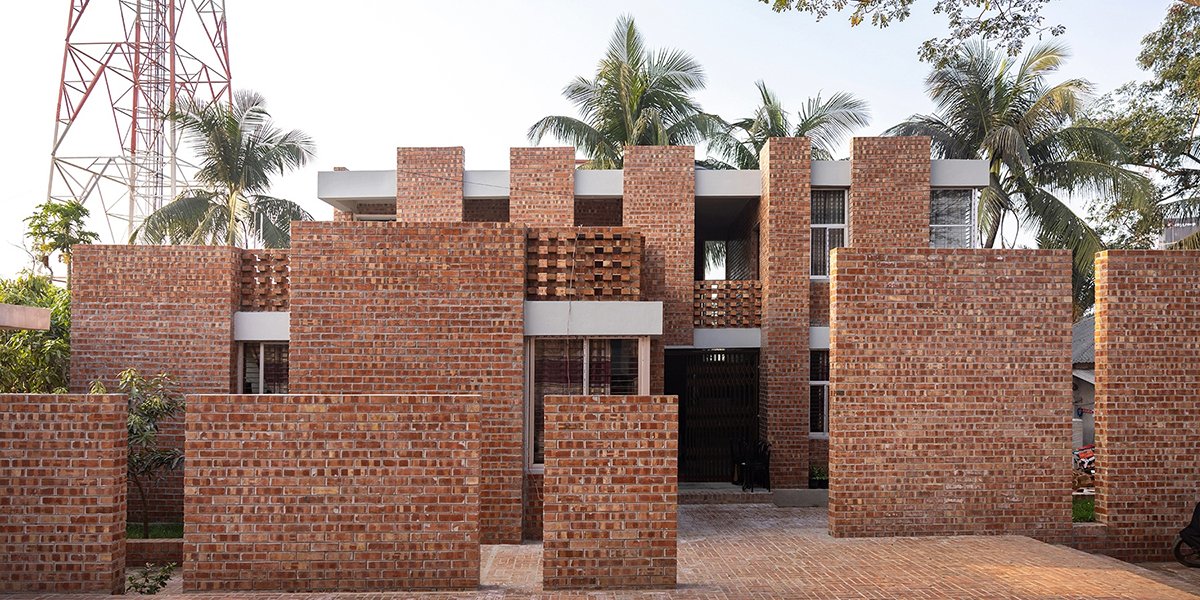

The structural system uses locally-produced brick load-bearing walls with reinforced concrete roofs © Asif Salman

Climate resilience has been central to the architectural approach. Given Kuakata’s vulnerability to cyclones, flooding, and saline intrusion, the structures are elevated to withstand seasonal surges. Passive cooling strategies reduce dependence on mechanical systems. A long water body on the southern side functions as a freshwater reservoir in a region where groundwater is often saline or arsenic-contaminated. At the same time, it enhances thermal comfort by cooling southern breezes before they enter the building. Ventilation and daylighting are optimized through jali screens, which filter sunlight and reduce heat gain. Structurally, the center combines locally produced brick load-bearing walls with reinforced concrete beams and roofs, offering durability suited to cyclone-prone environments.

CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

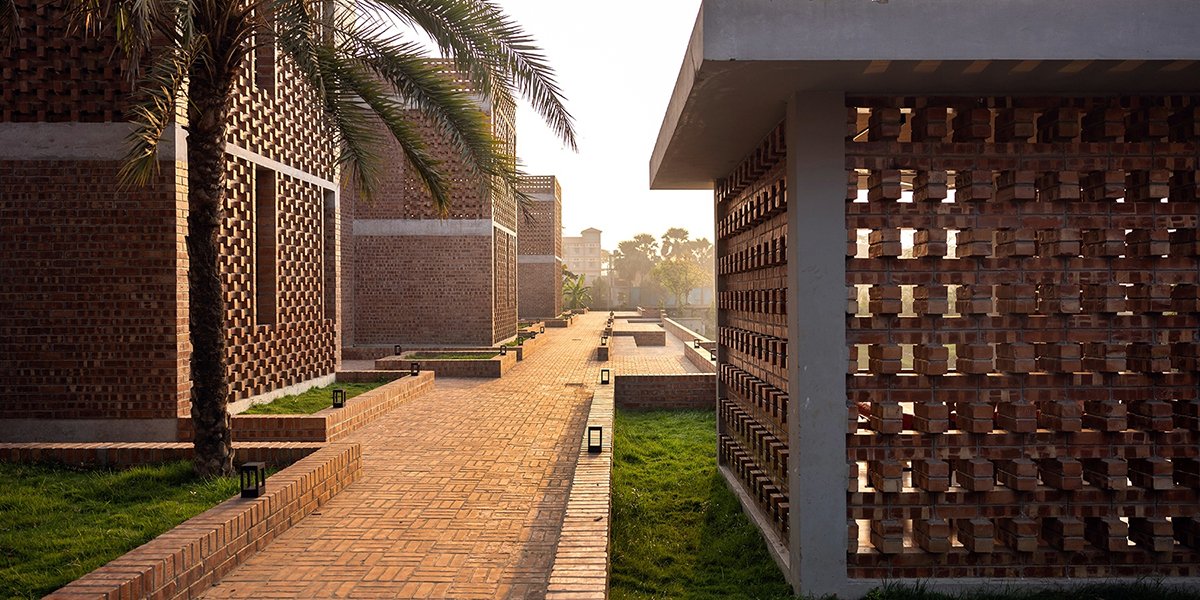

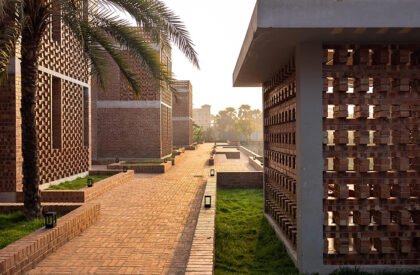

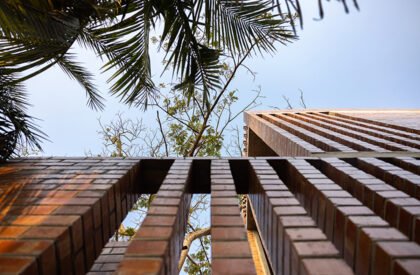

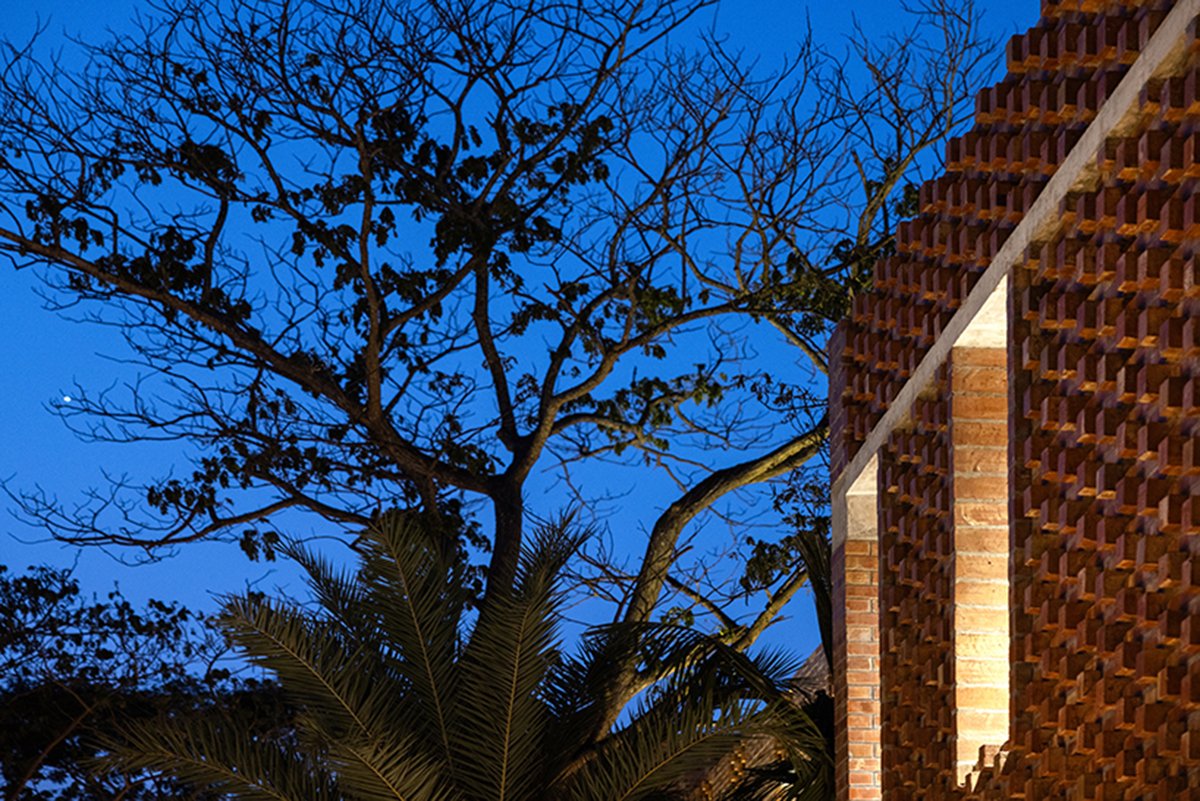

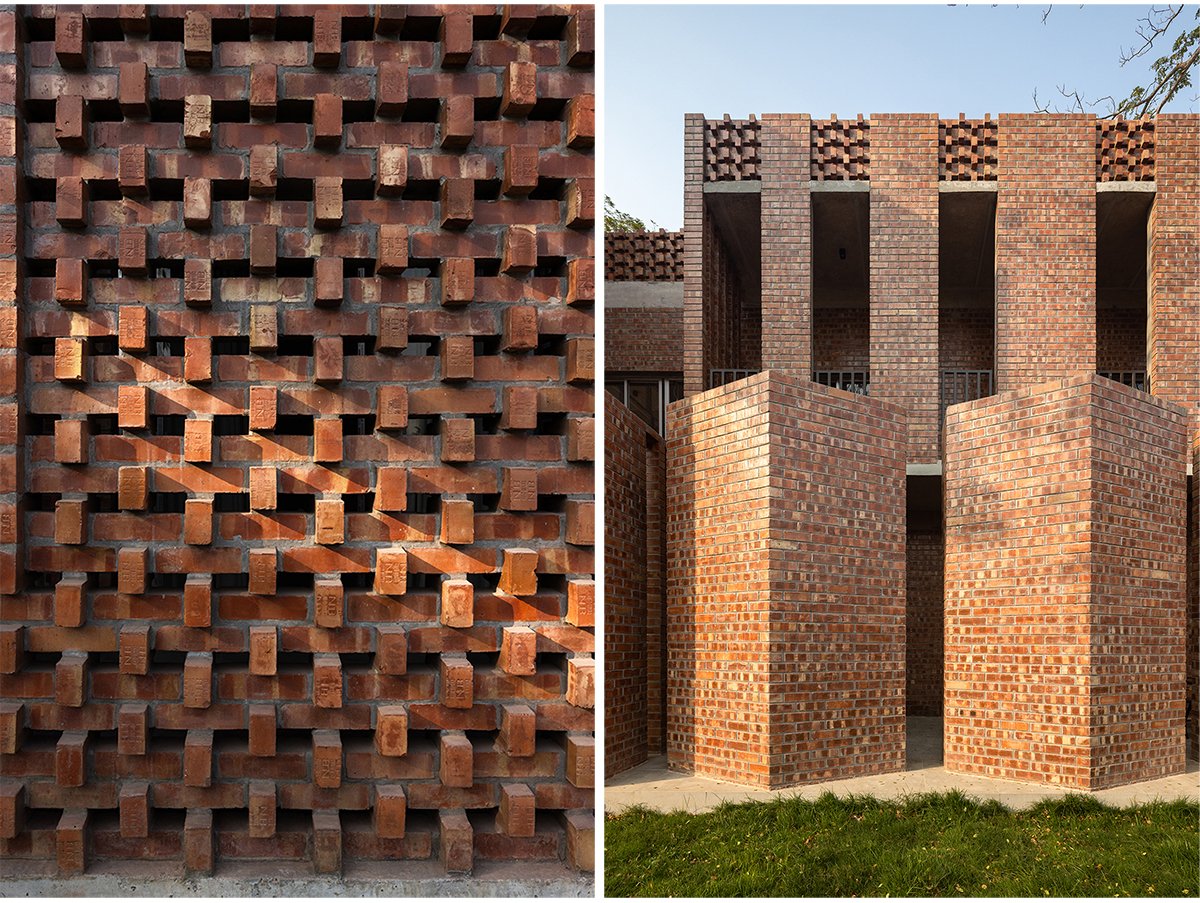

Jali screens promote ventilation while minimizing heat gain and allowing filtered light and Ariel View at Entry © Asif Salman
CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

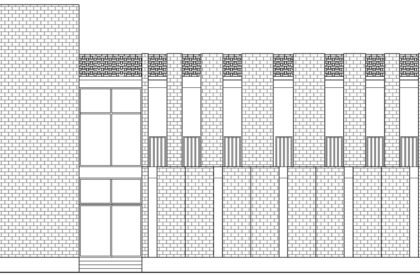

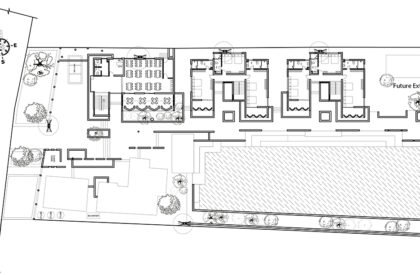

Section © Community Development Centre (CODEC)
CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

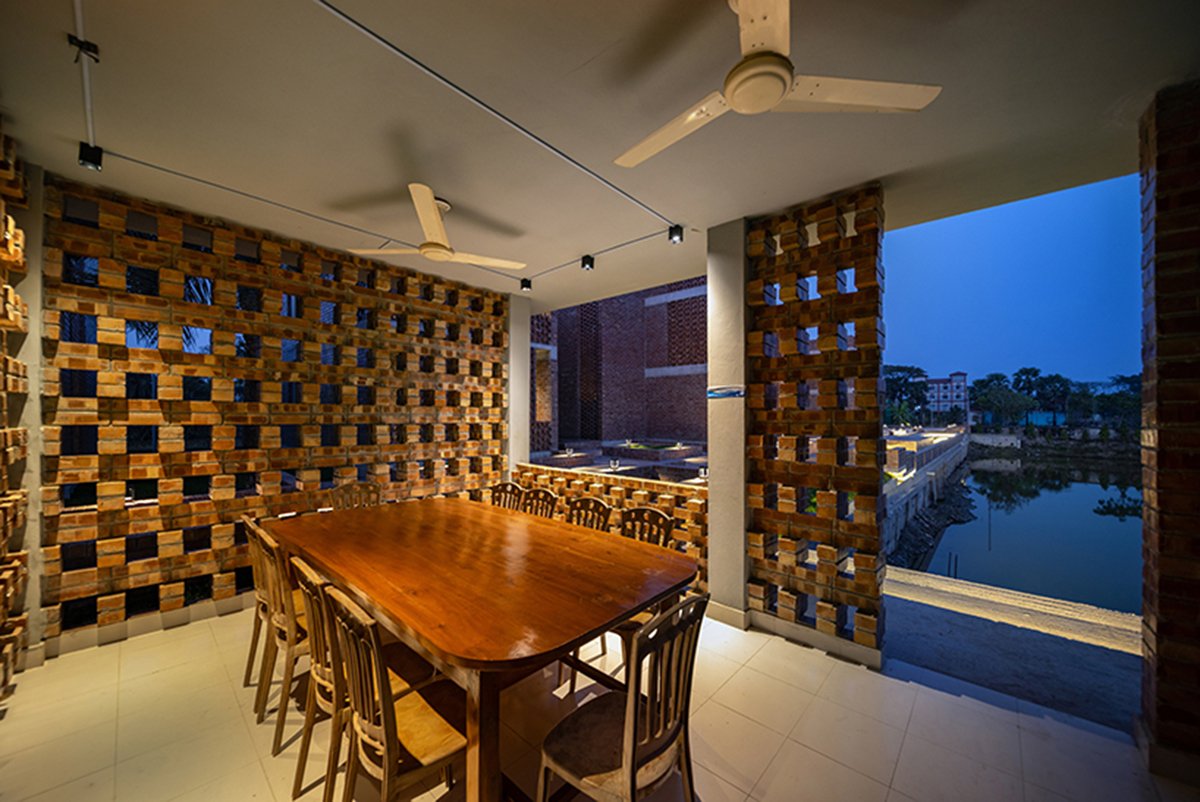

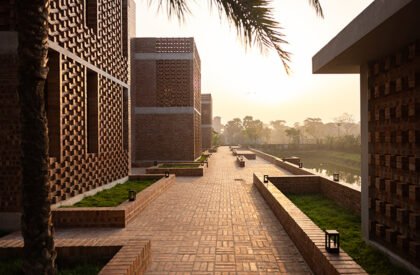

The interior layout includes classrooms, seminar spaces, and residential units for trainees © Asif Salman

Material choices reflect a balance between resilience, ecological responsibility, and cultural identity. Locally made bricks reinforce regional craftsmanship, while green building features such as solar energy systems and rainwater harvesting units reduce the environmental footprint and promote self-sufficiency.

The interior layout supports a range of programmatic needs. Alongside classrooms and seminar halls, the center includes residential facilities for trainees and facilitators, dining spaces emphasizing fresh, locally sourced food, and multipurpose gathering areas. Outdoor courtyards, shaded walkways, and landscaped zones create opportunities for informal interaction and relaxation, fostering a sense of community within the learning environment.

CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

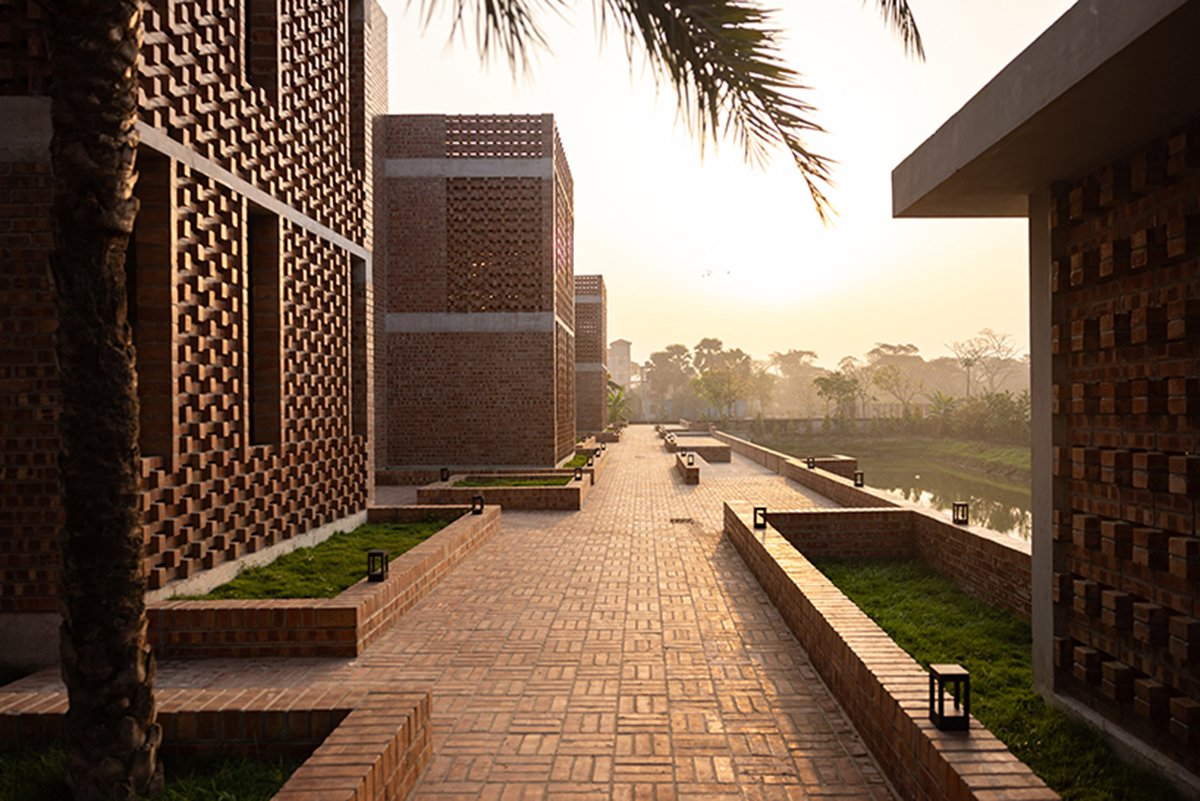

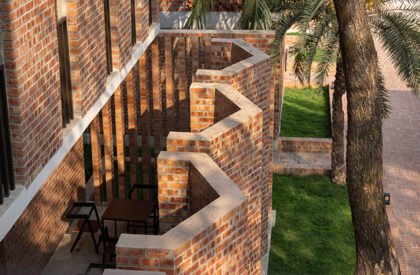

The design addresses cyclone resilience through material and structural choices © Asif Salman
CODEC Training Centre - Kuakata | Community Development Centre (CODEC)
Ariel View at Entry © Asif Salman

Beyond functioning as an educational facility, the center acts as a platform for experiential learning. Its location near the coast allows training programs to integrate field visits, connecting participants with the environmental, economic, and cultural dynamics of the region. This immersive approach enhances both practical knowledge and community awareness.

CODEC Training Centre - Kuakata | Community Development Centre (CODEC)

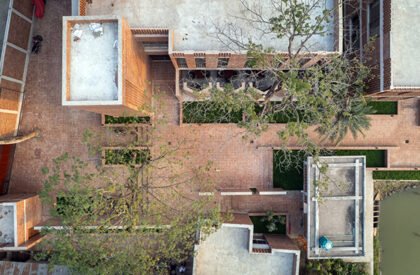

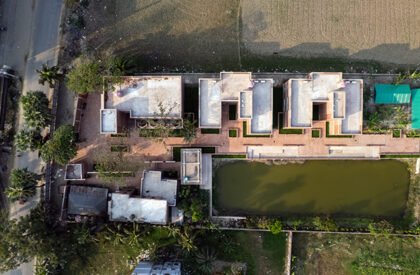

Bird’s Eye View of Centre © Asif Salman

Ultimately, the Kuakata Training Center is envisioned as more than an institution—it is a transformative space that weaves together education, environmental stewardship, and community development. Through participatory construction, climate-sensitive design, and sustainable operations, it stands as a model for resilient coastal development in Bangladesh and beyond.
