Information

  • Project Name: The Brick Lantern House
  • Practice: Studio Biomorph
  • Products: Asian Paints , Parryware , AGT Panels , Pavit Tiles
  • Completion year: 2022
  • Gross Built up Area: 3000 sqft
  • Project Location: Bangalore
  • Country: India
  • Structural Consultants: Raghavendra Bs
  • Contractors: Monopol Constructions
  • Photo Credits: Durjoy Chowdhury
More Info Less Info

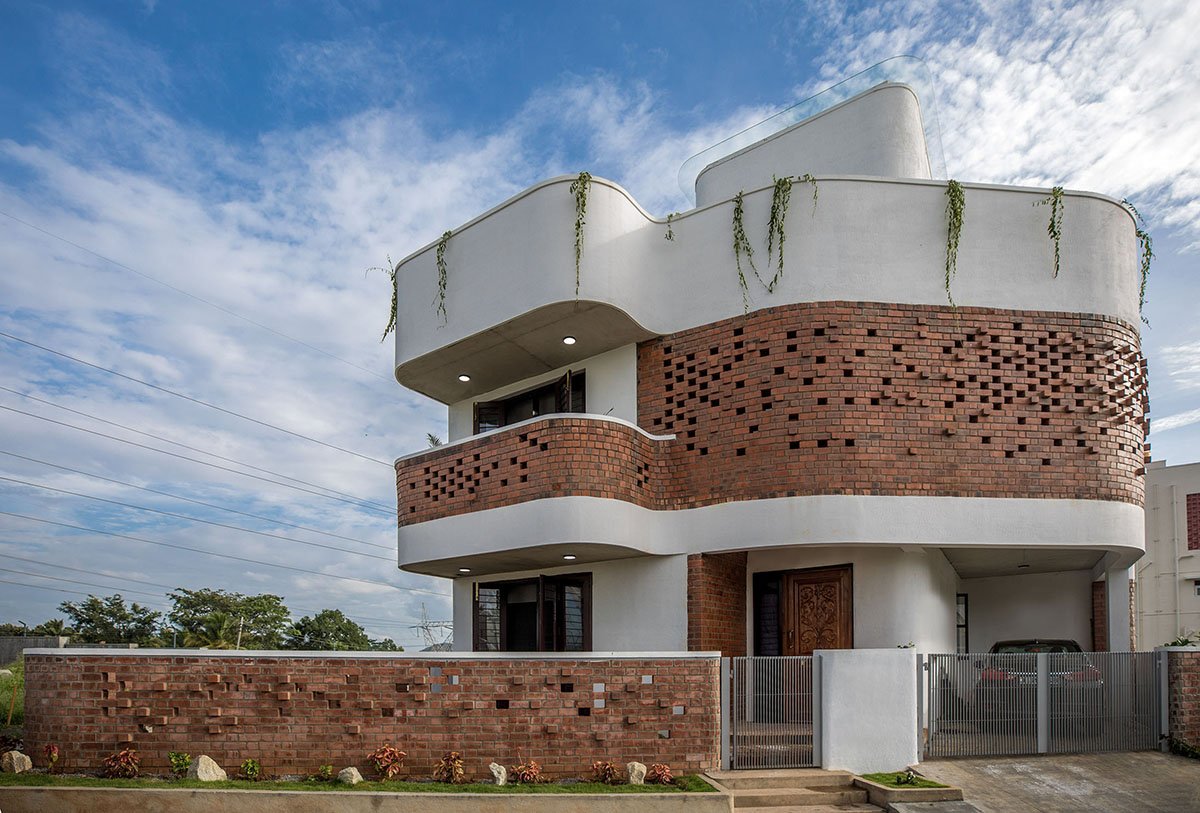

Excerpt: The Brick Lantern House is a residence designed by the architectural firm Studio Biomorph. The resultant building envelope was a carefully crafted parametric brick facade that responded to the prevailing climate for better building performance. The house’s layout is mainly dictated by vastu and the client’s requirements. The project highlight is the parametrically crafted façade that acts as a porous skin for the first-floor family living and semi-outdoor space. The brick skin is carefully designed with the play of Brick projections and perforations envelopes the upper floor’s north and west sides.

Project Description

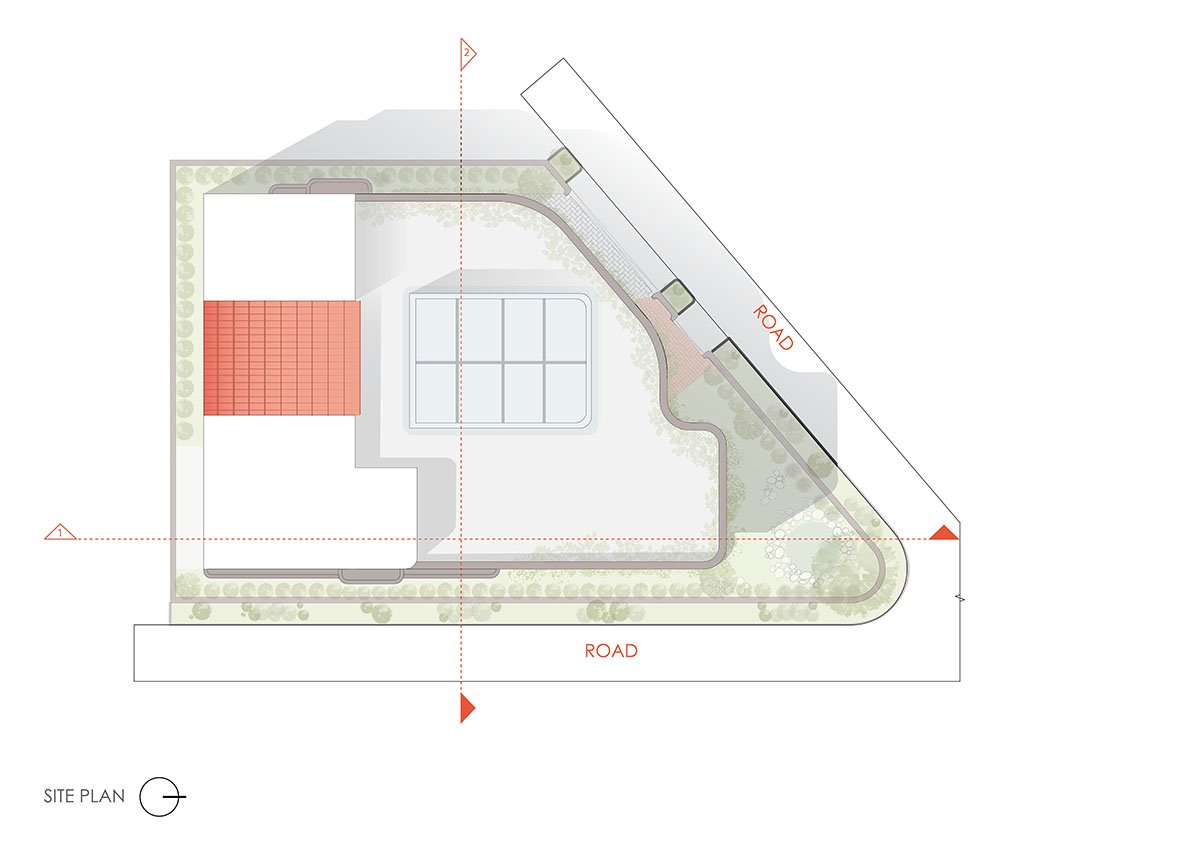

[Text as submitted by Architect] The Brick Lantern House is part of a gated community set on the outskirts of Bengaluru, on an odd-shaped corner plot of the 2000 SFT site area. It’s a north-facing plot bounded by two quiet roads on the north and east sides, with panoramic views of the lush landscape and hills around the site. The primary requirements were to accommodate a two-storey home for a family of 4, with 4 bedrooms and 1 car park.

The Brick Lantern House | Studio Biomorph
© Durjoy Chowdhury

CONCEPT & LAYOUT

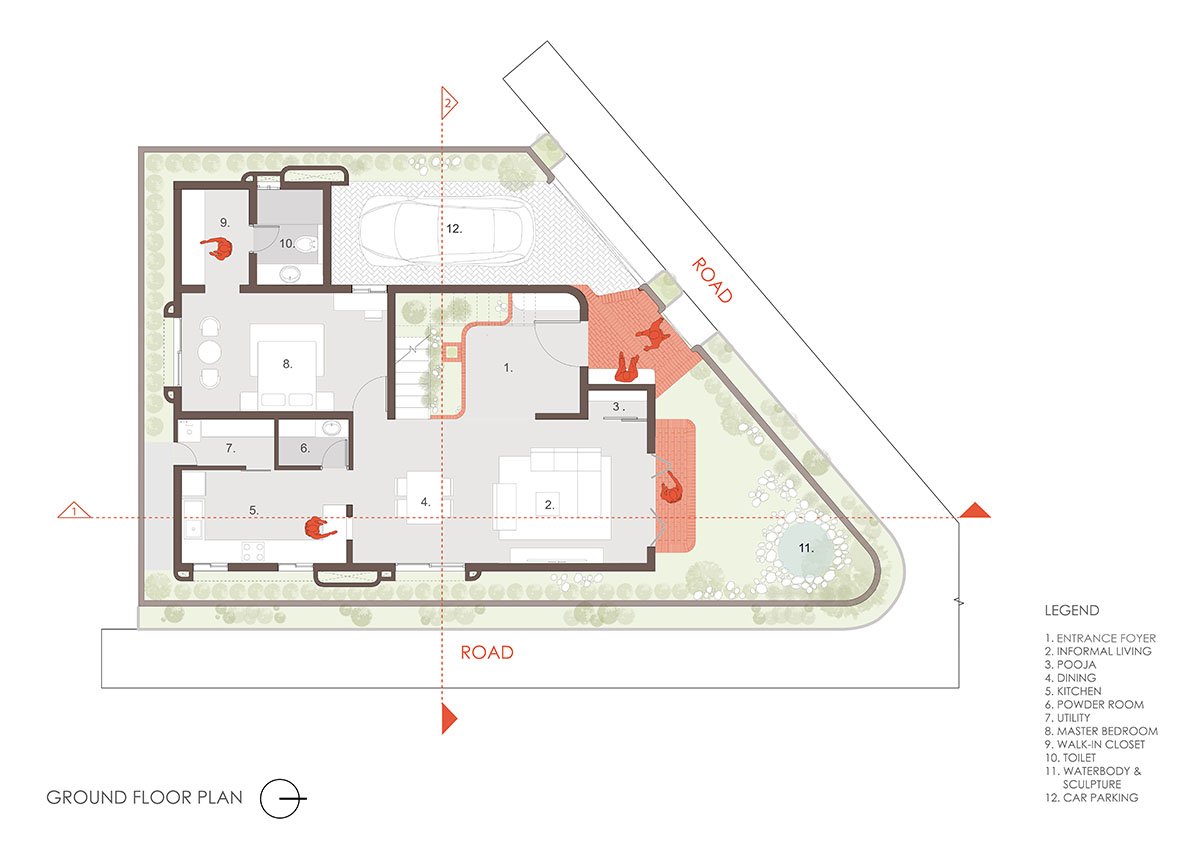

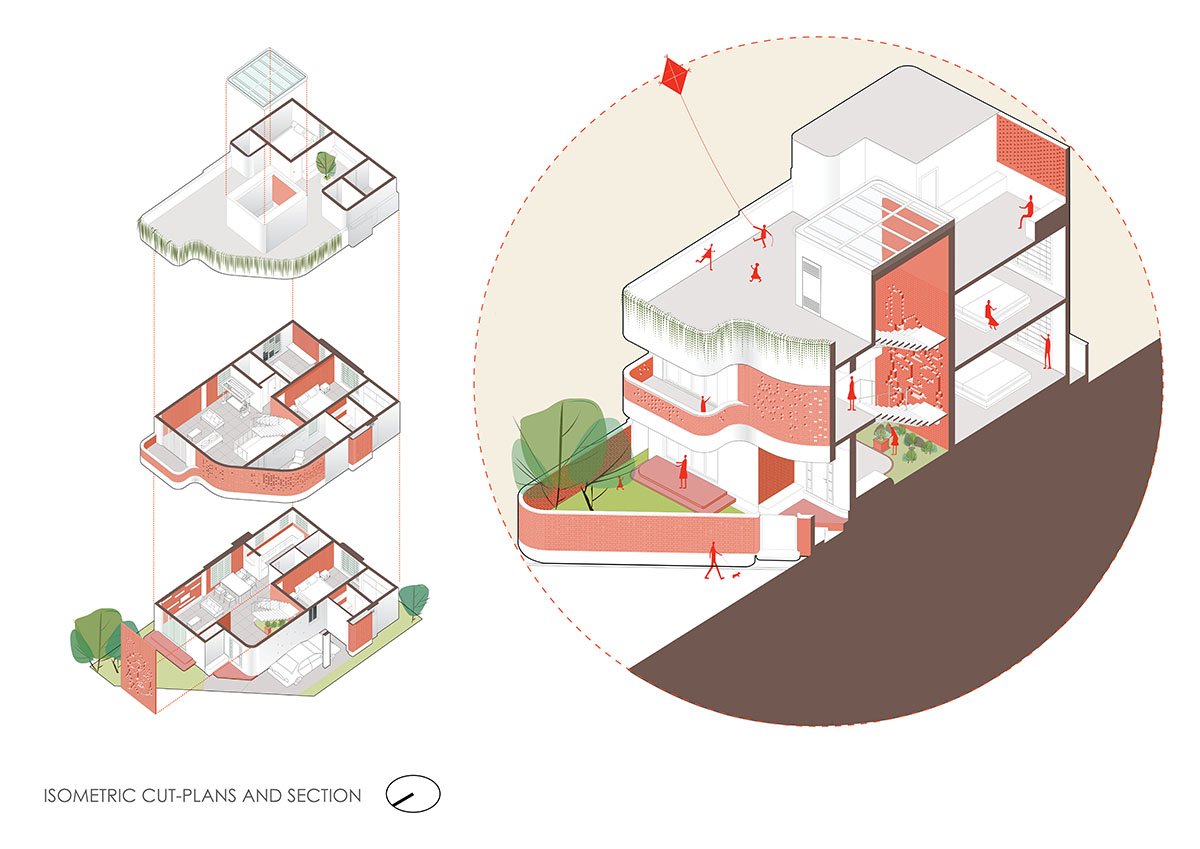

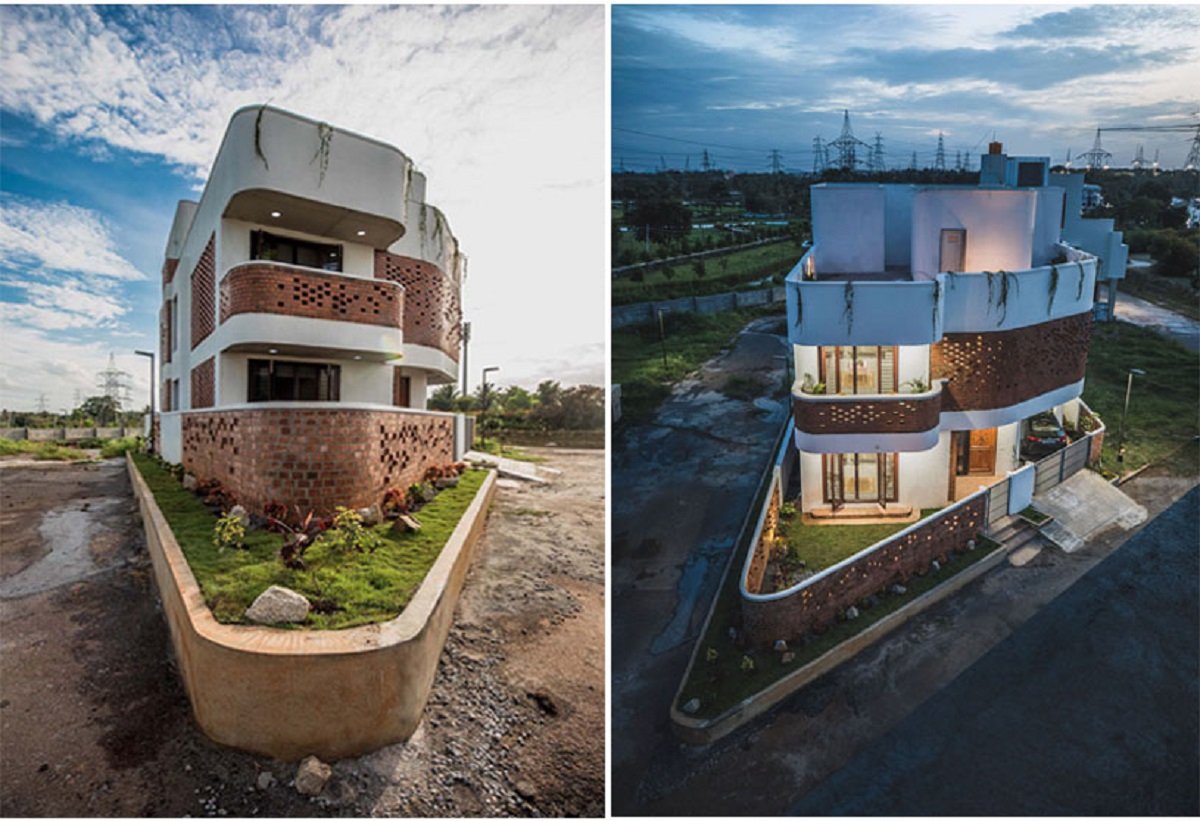

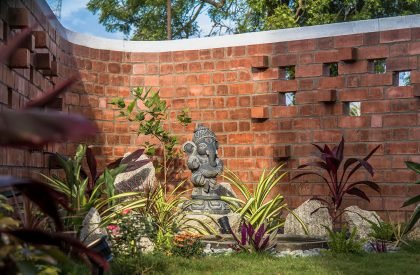

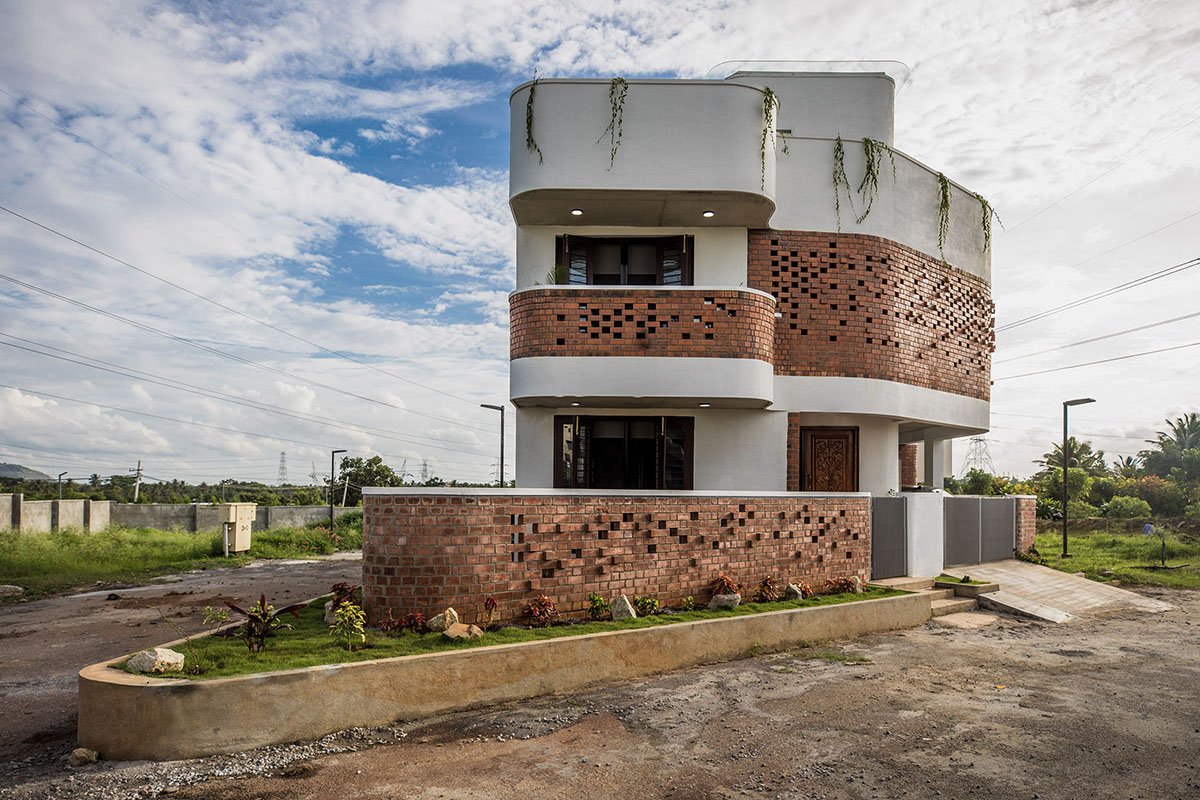

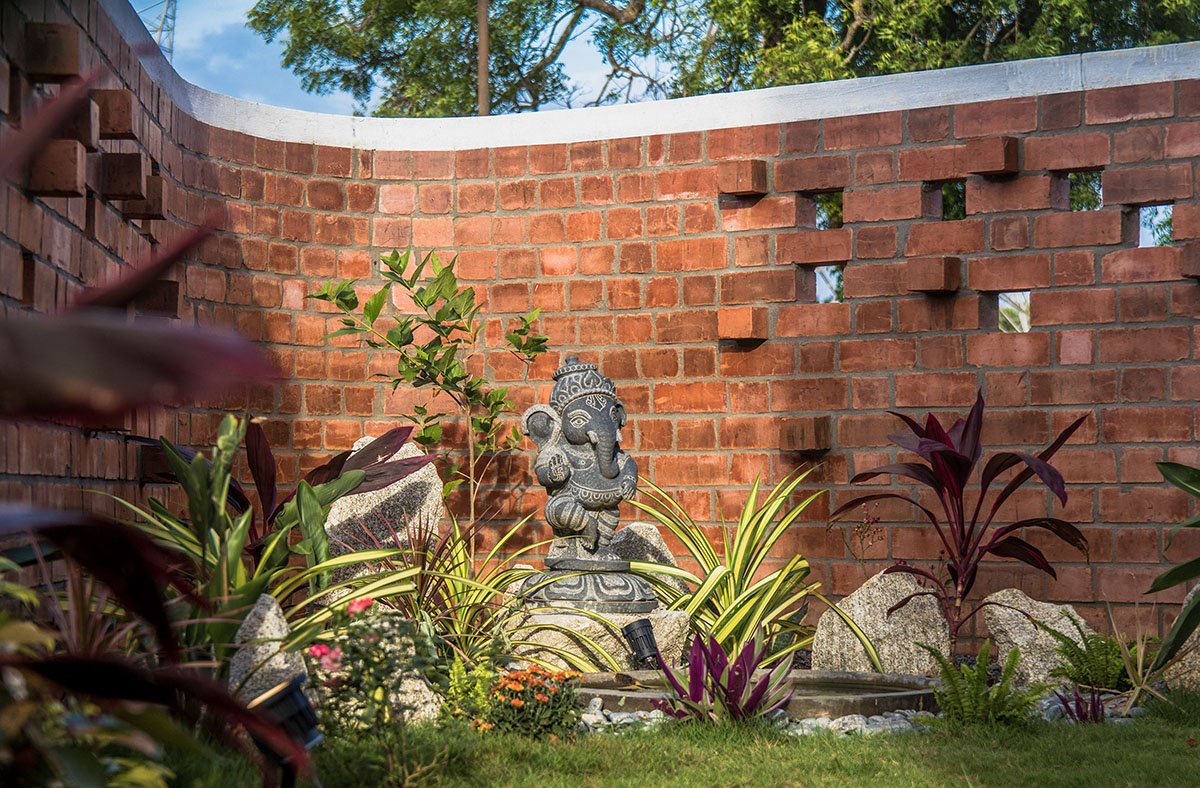

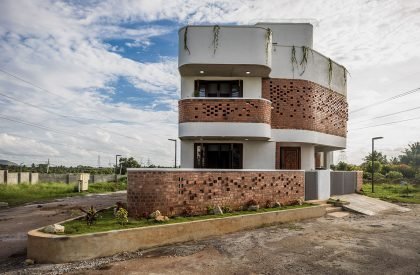

Presented with an acute site for us to work with, we decided to use this to our advantage and develop a form to blend with the site profile rather than go against it. This, in turn, helped us utilize the maximum of the site area to accommodate all the client’s requirements. The resultant building envelope was a carefully crafted parametric brick facade that responded to the prevailing climate for better building performance. The house’s layout is mainly dictated by vastu and the client’s requirements. The northeast corner of the plot ends up as the odd profile acts as the front landscape patch of the house. The family living on both floors, which spills over to the landscape in the front, allows the flow of prevailing north-east winds into the premises.

The Brick Lantern House | Studio Biomorph
© Durjoy Chowdhury
The Brick Lantern House | Studio Biomorph
© Studio Biomorph

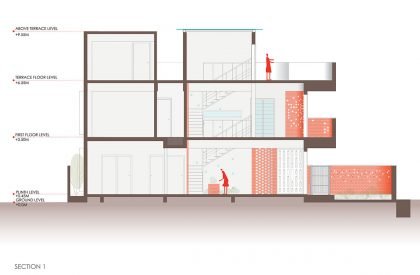

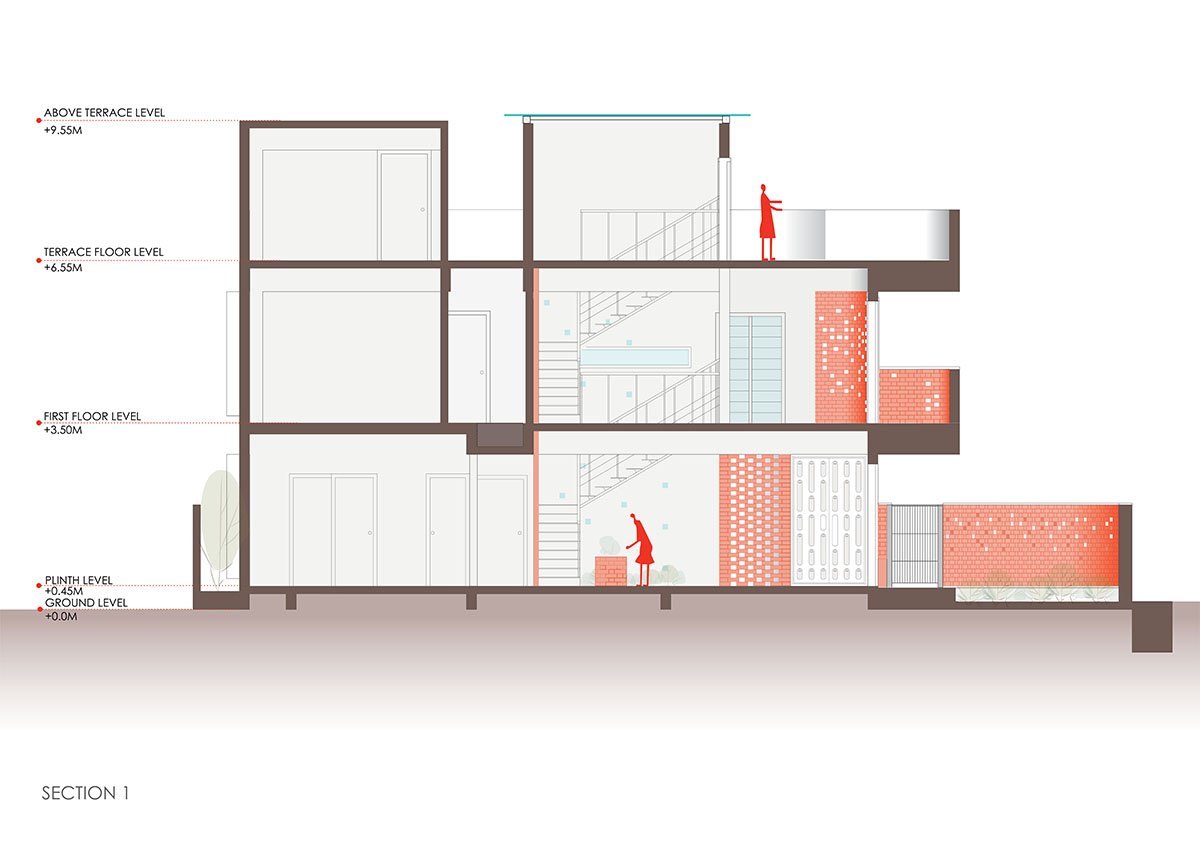

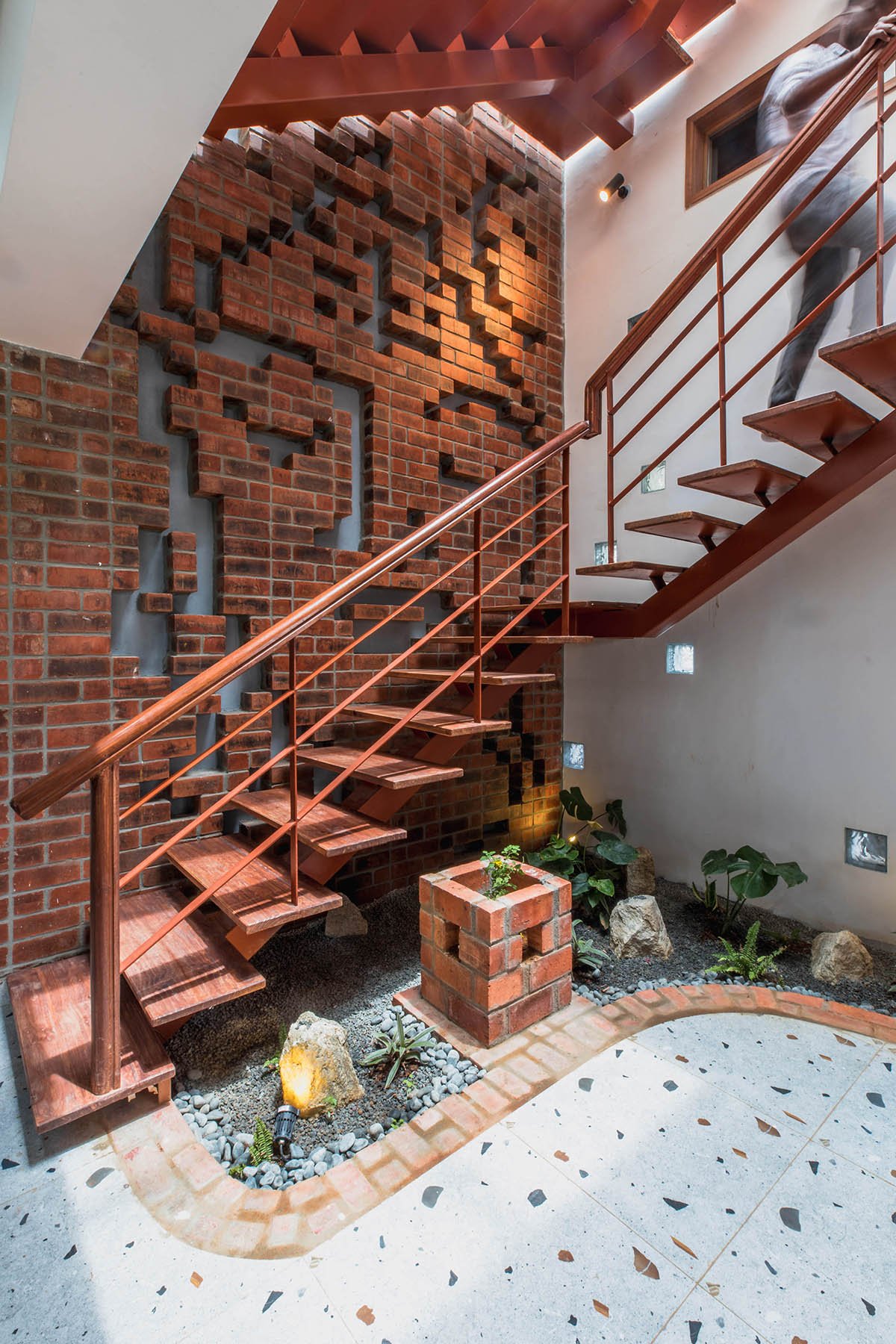

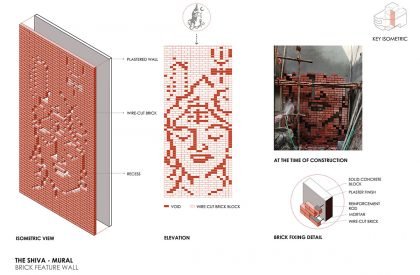

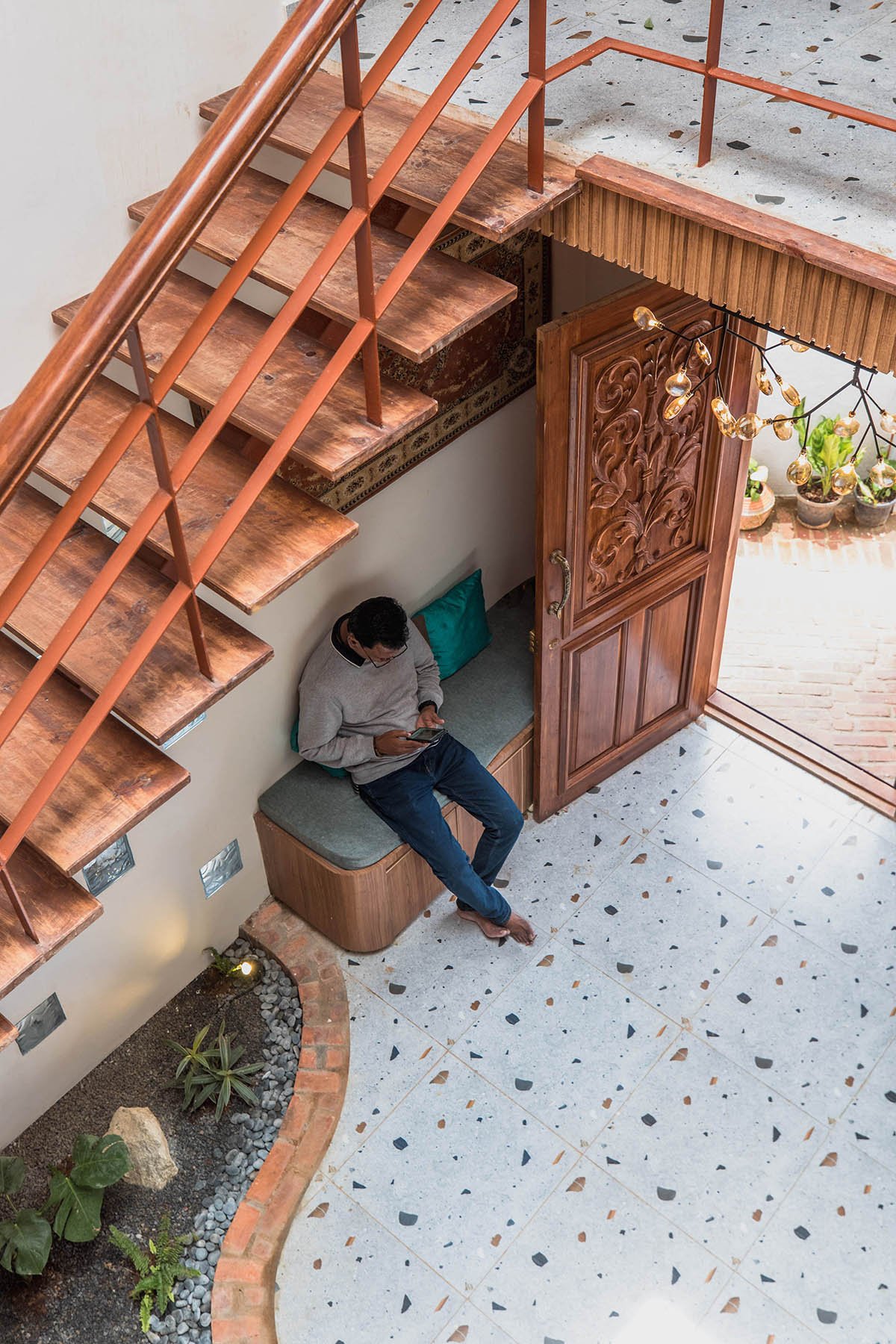

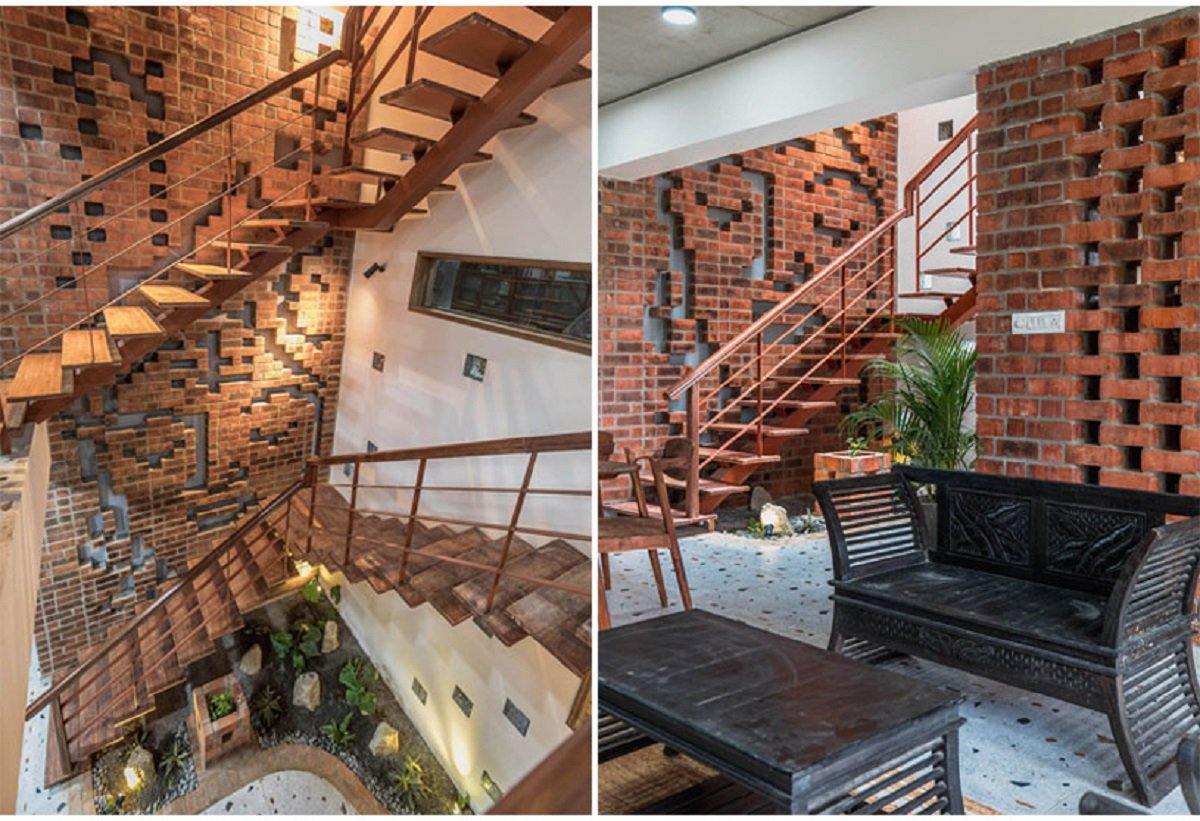

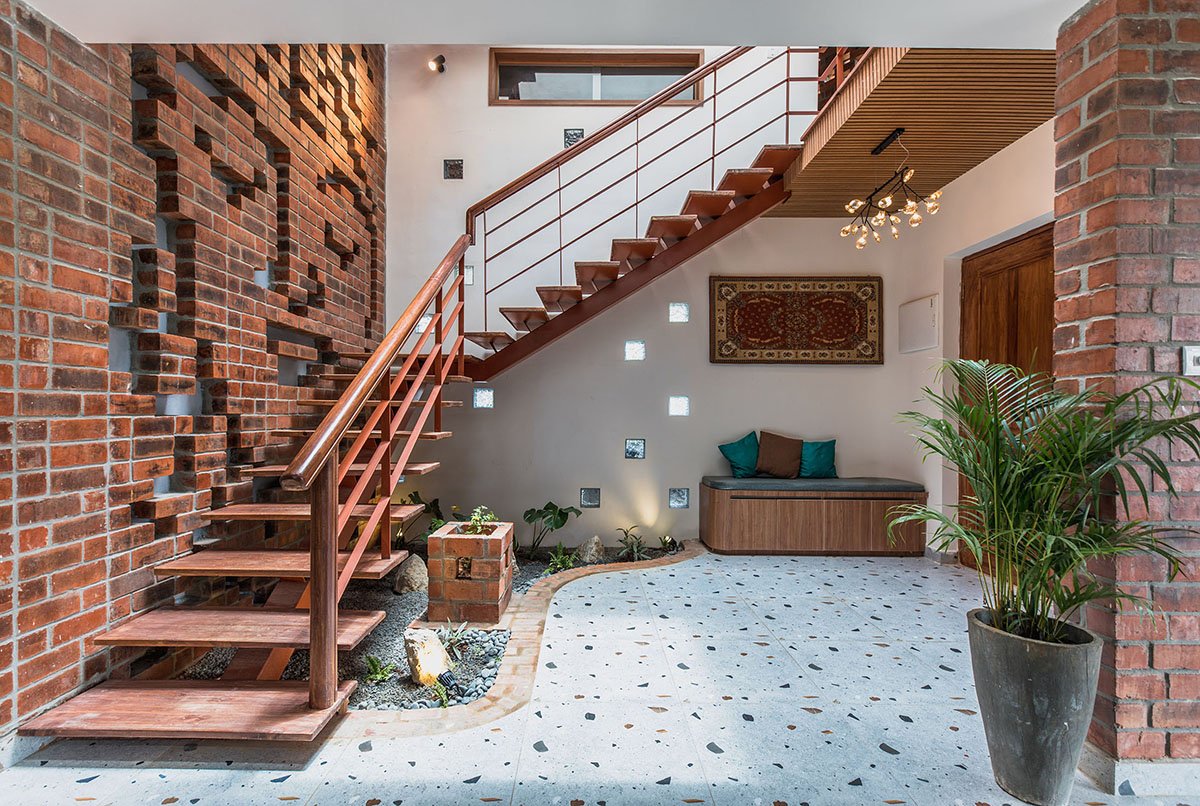

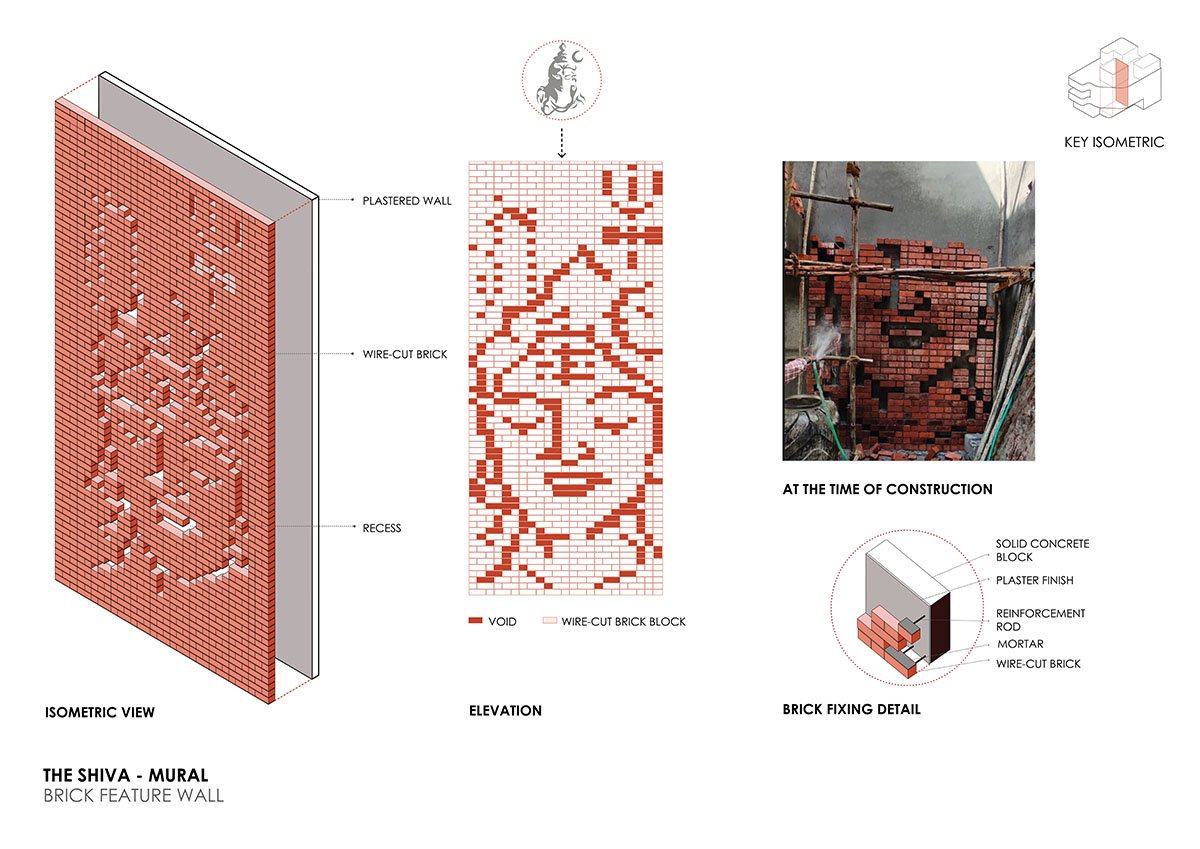

The entrance foyer of the house stretches out to a triple-height green court, which encompasses the circulation of the house, providing ample natural lighting throughout the day. This light well compliments the feature brick wall, which is the fulcrum of the house. This grandeur feature wall was carefully designed to depict the face of “Lord Shiva artistically.” A traditional Brick planter box called “Tulsi Peeth” (Holy Basil) is integrated as a part of the green court, complimenting the brick feature wall. The idea was to connect the users with the traditional elements of Indian culture while achieving a contemporary look.

The Brick Lantern House | Studio Biomorph
© Durjoy Chowdhury

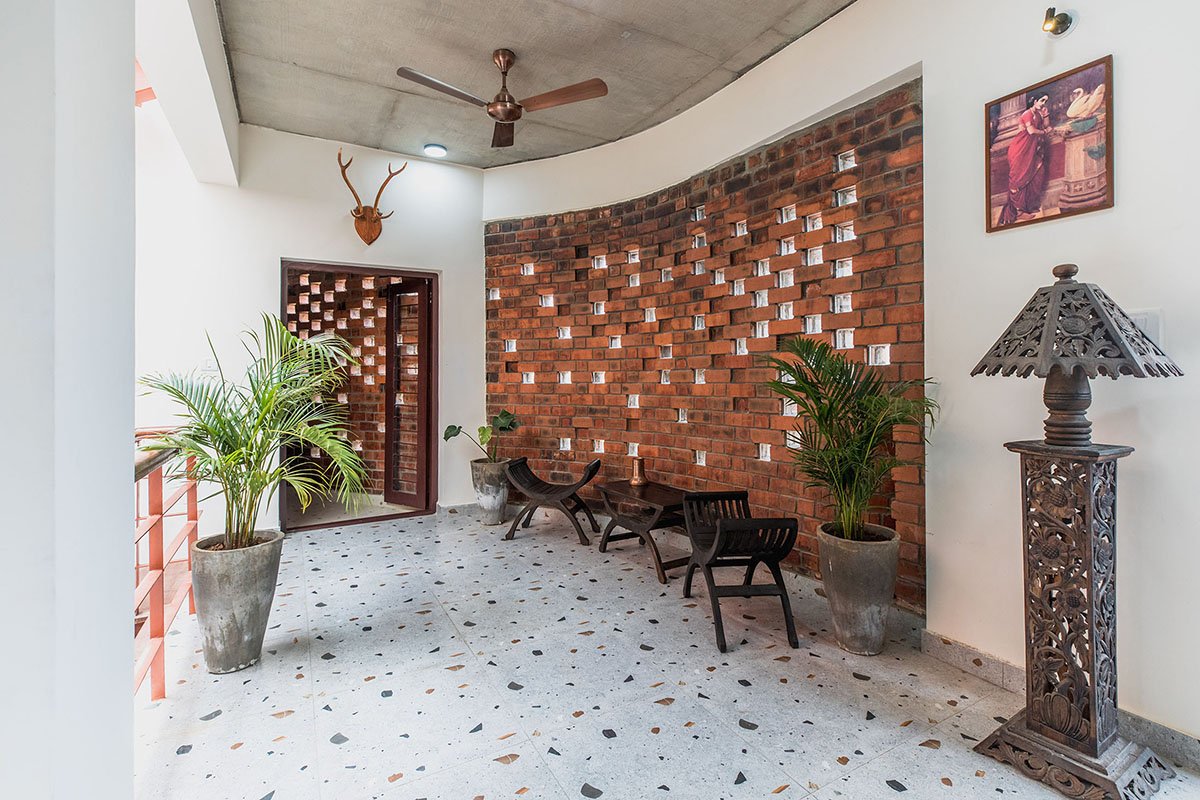

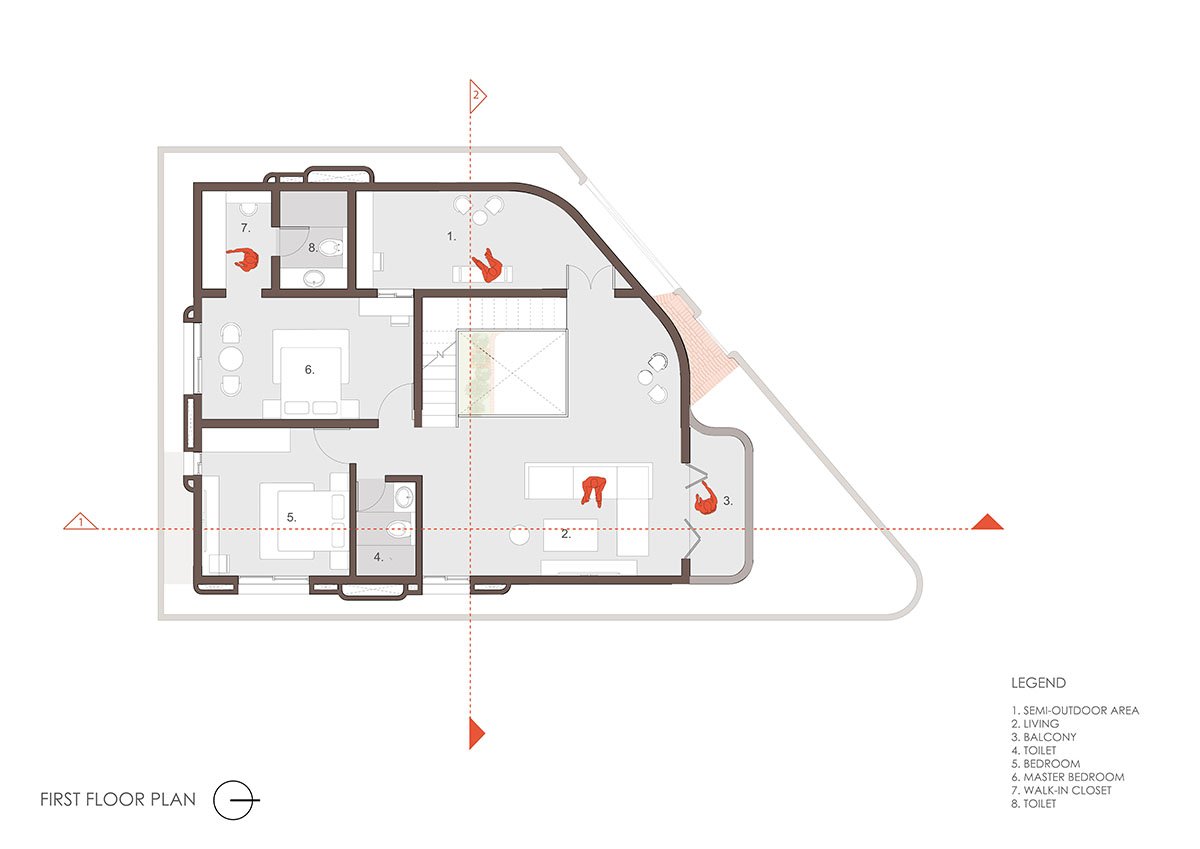

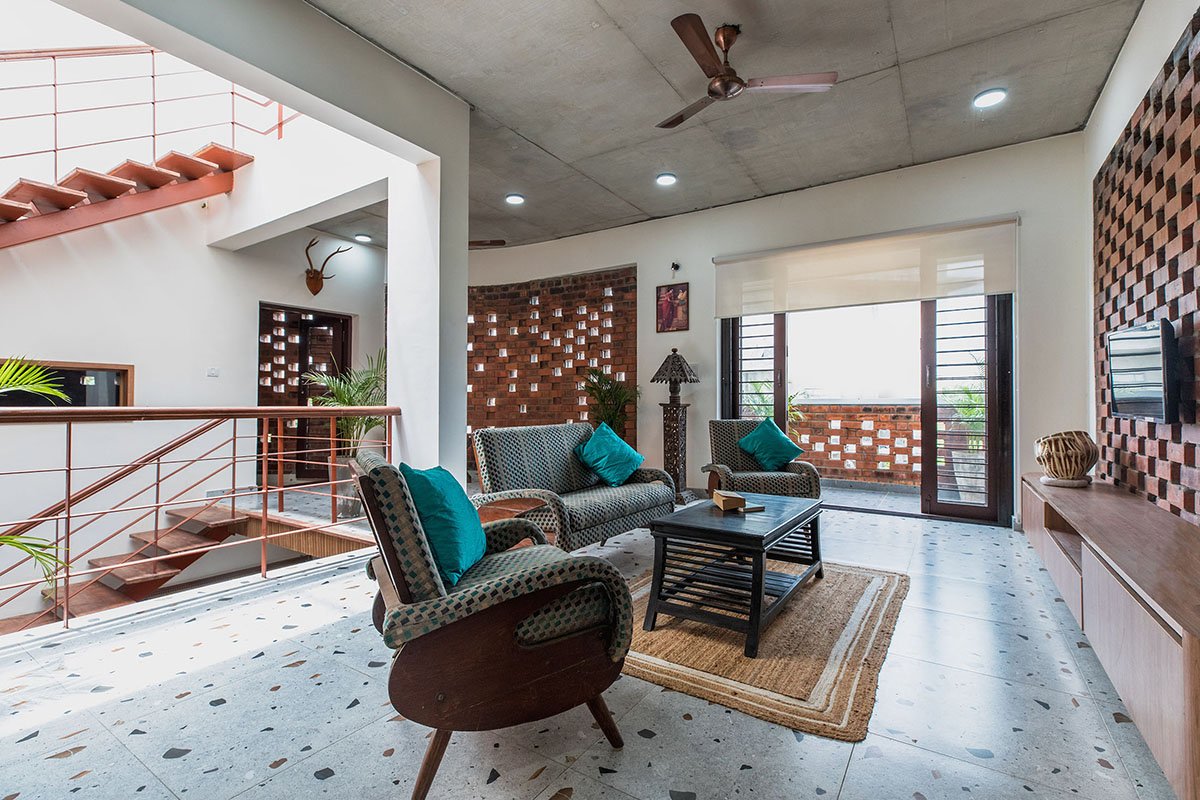

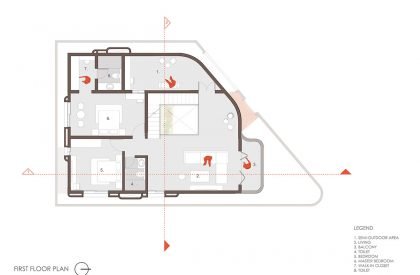

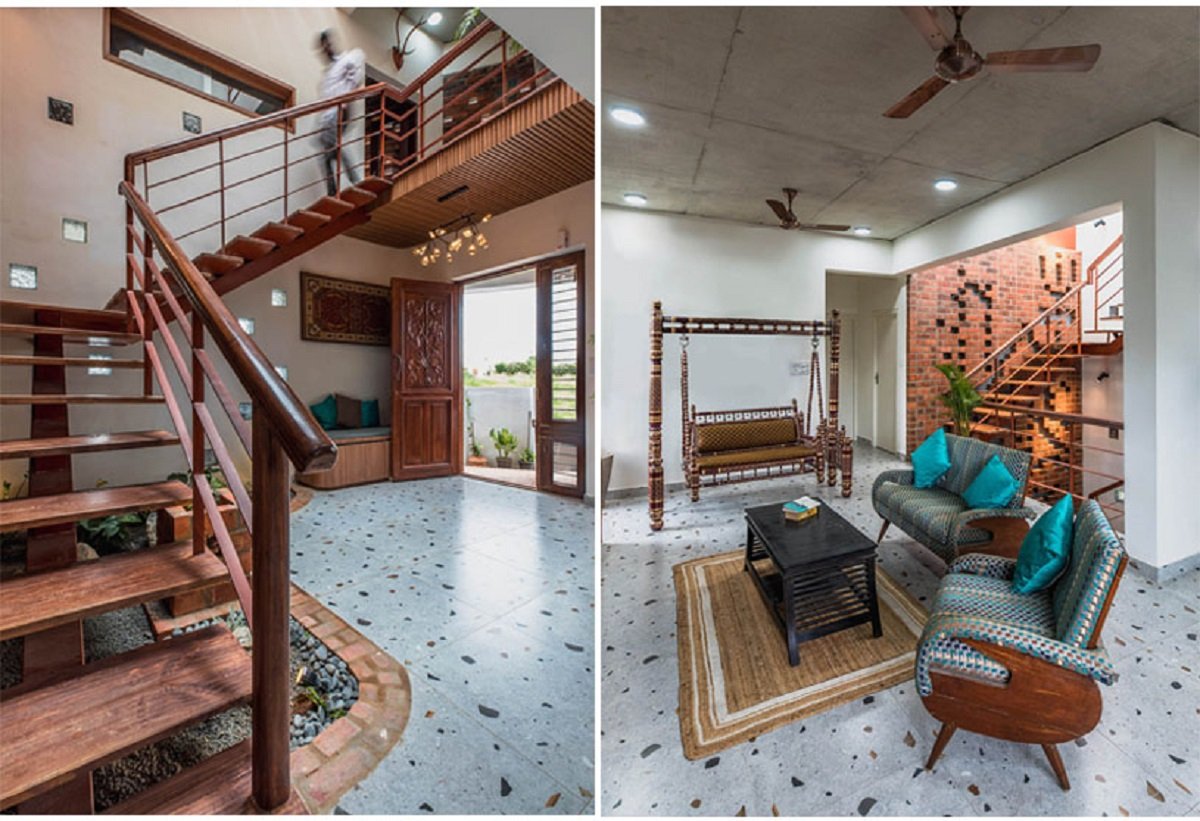

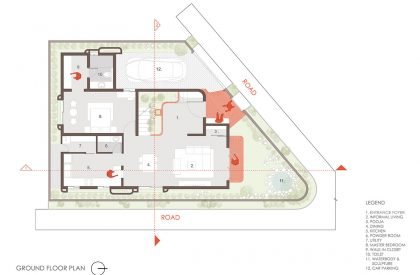

The kitchen, dining, and living on the ground floor are organized seamlessly always to capture views of the front garden and internal green court. As one climbs up to the upper floor, the brick screen wall offers the user a panoramic display of intriguing patterns, animating throughout the day. The upper floor comprises two bedrooms, family living, and a semi-outdoor space for the family.

The Brick Lantern House | Studio Biomorph
© Durjoy Chowdhury

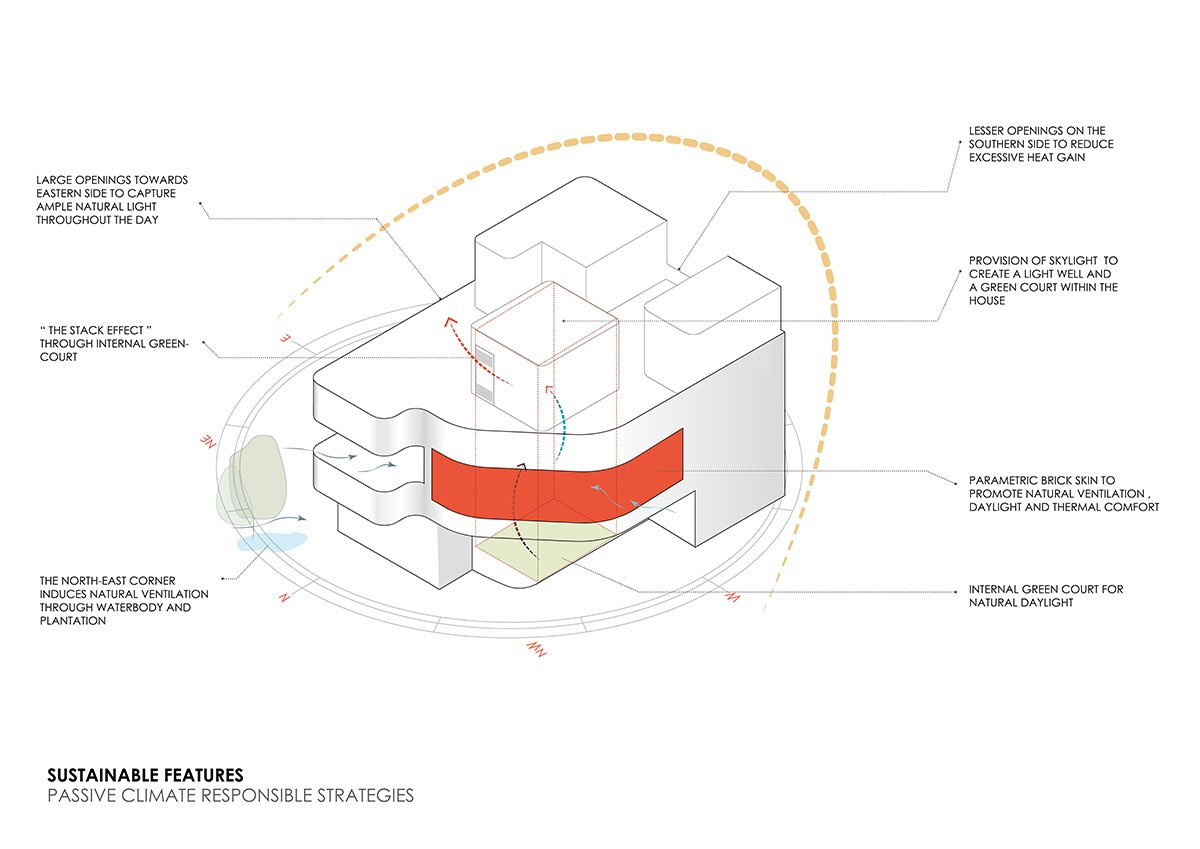

SUSTAINABLE FEATURES

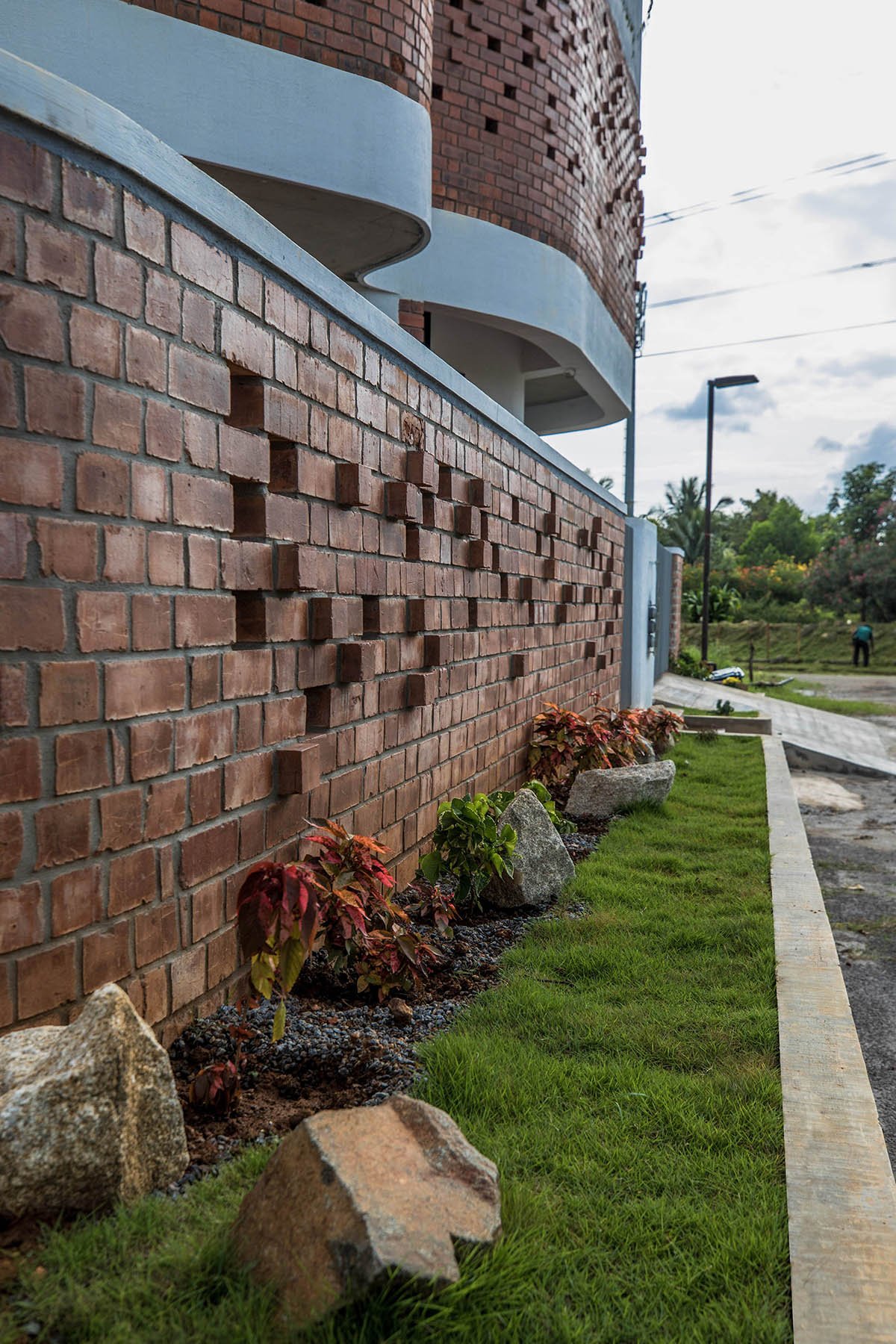

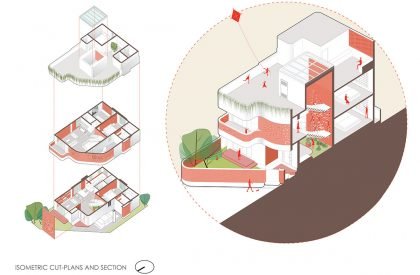

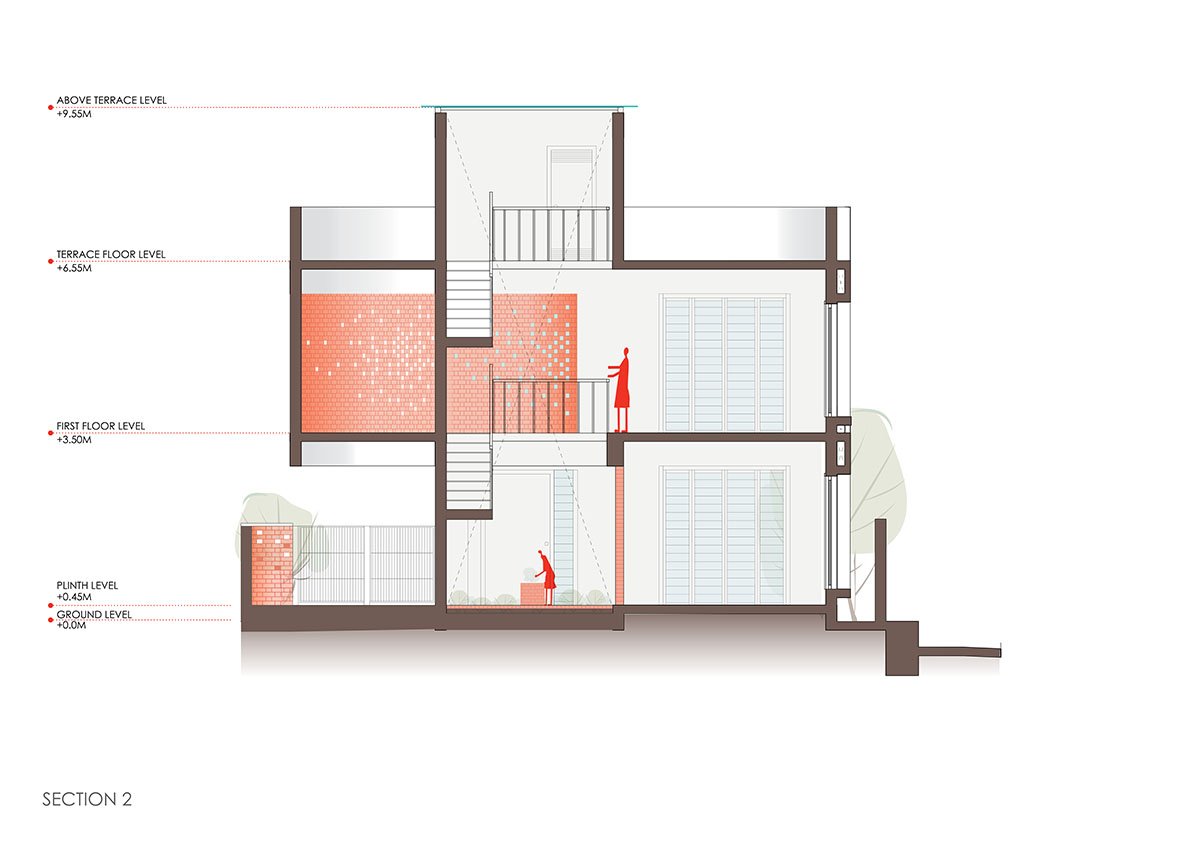

With Brick as a timeless material with the properties of good thermal performance, exposed wire-cut bricks were primarily used on the exterior which seamlessly flows to the interior spaces and prevents excessive heat gain within the building for most times of the day and year. The overall design responds to the solar parameters such as the building envelope and the internal planning aspects. The layout on both the floors is formed around a central triple-height green court, which acts as a light well for the interwoven surrounding spaces and helps the hot air to vent out by stack effect.

The Brick Lantern House | Studio Biomorph
© Durjoy Chowdhury
The Brick Lantern House | Studio Biomorph
© Studio Biomorph

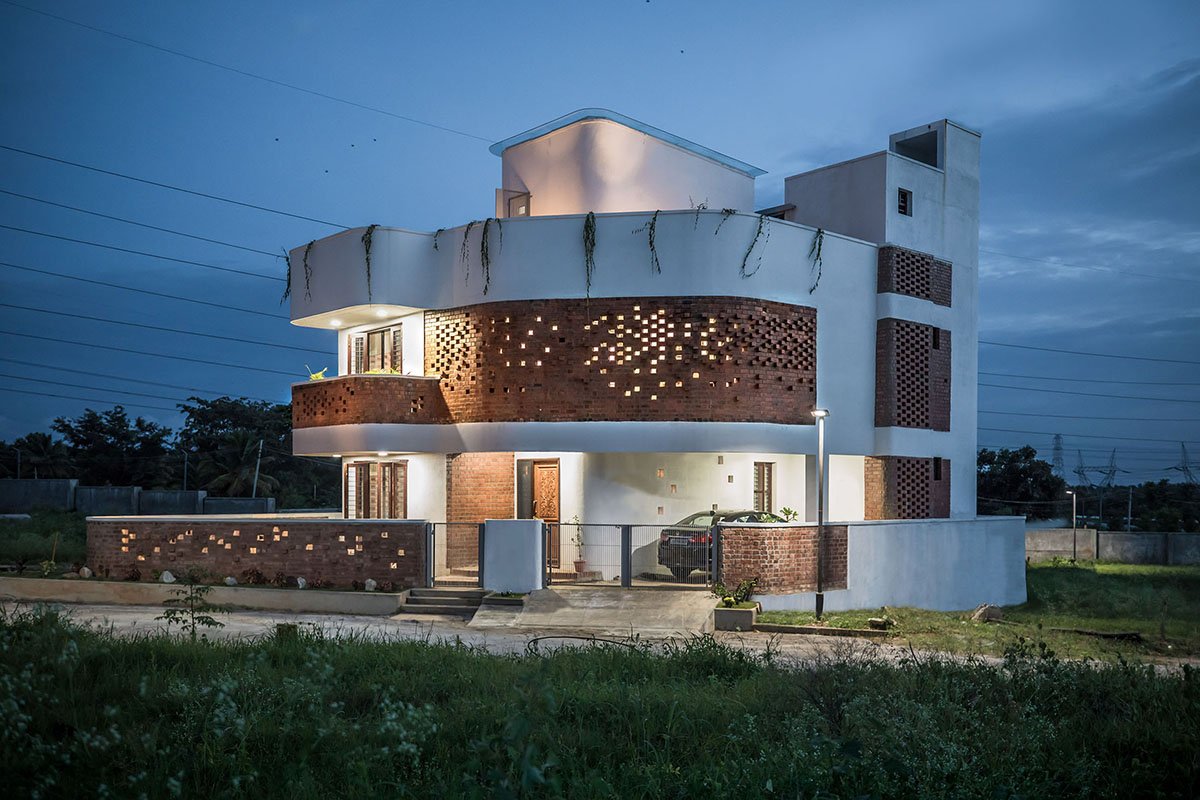

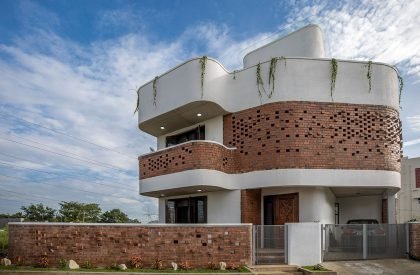

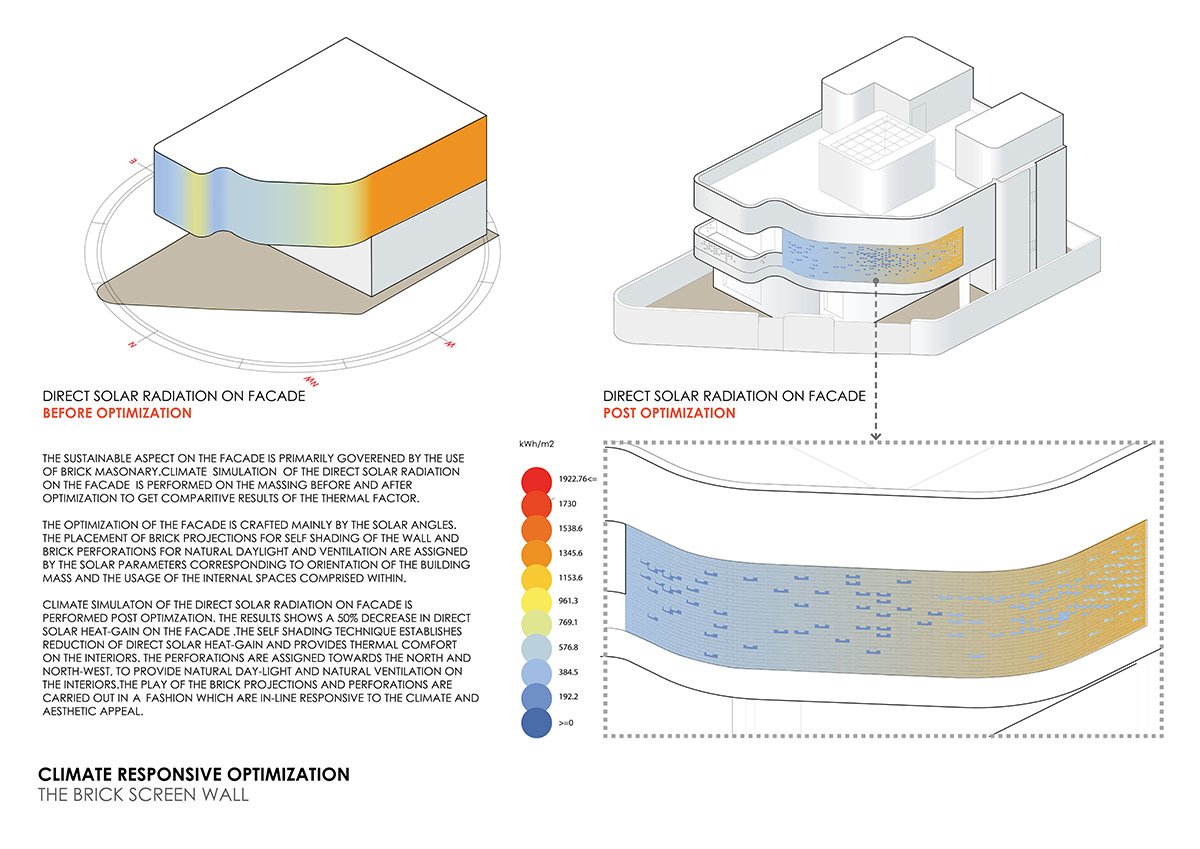

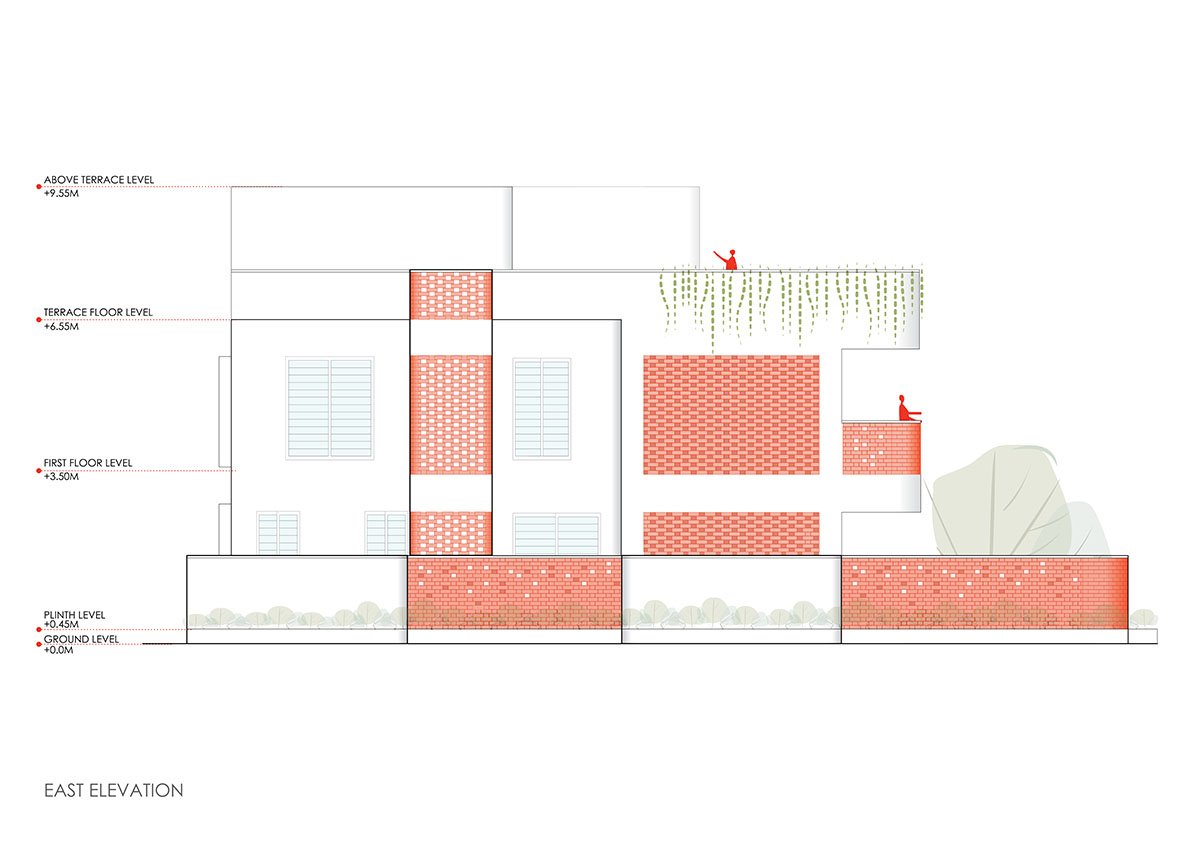

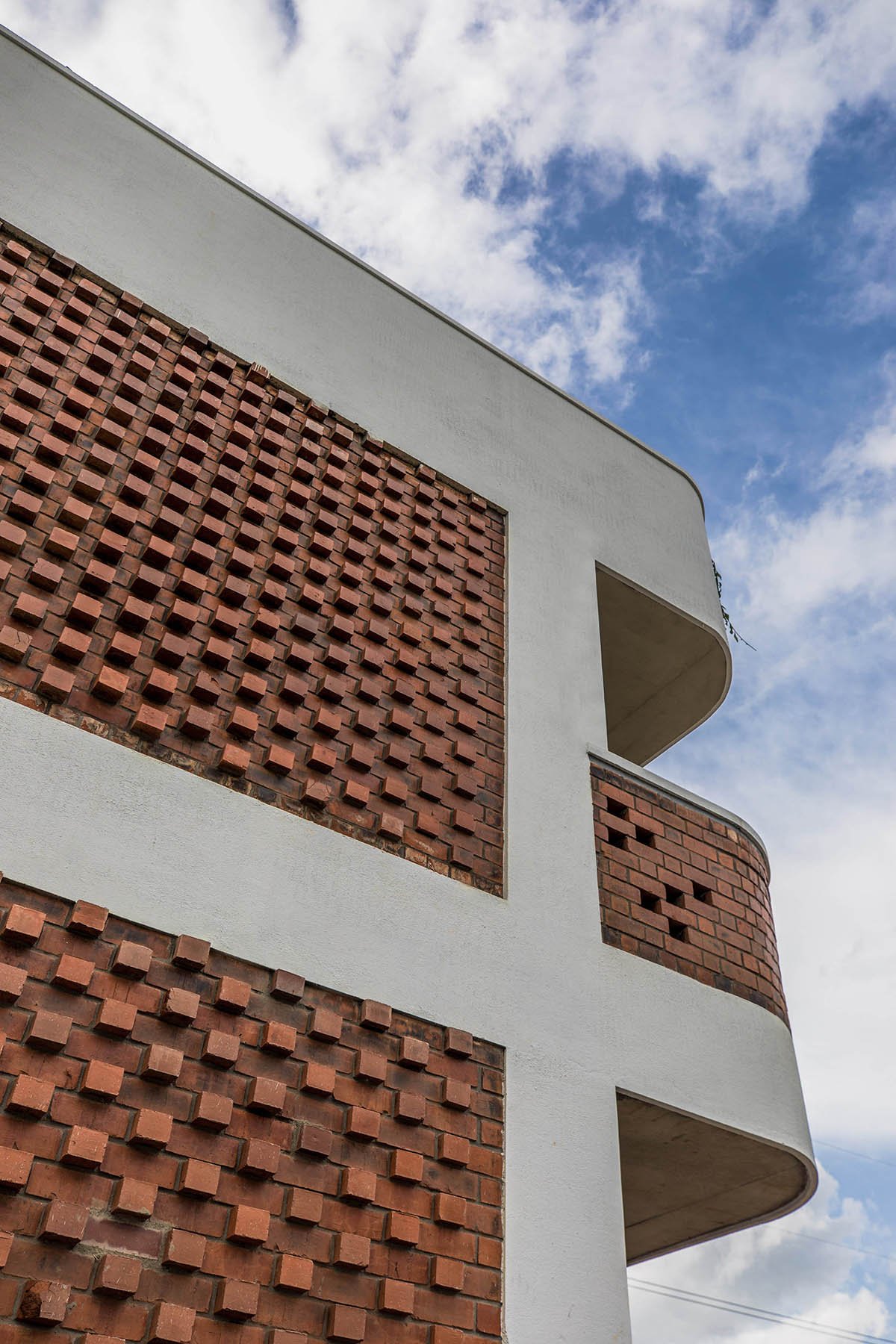

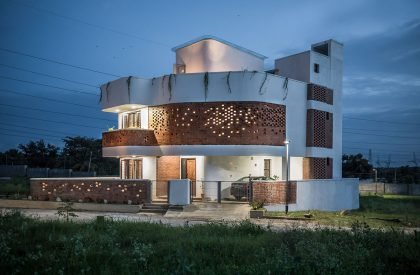

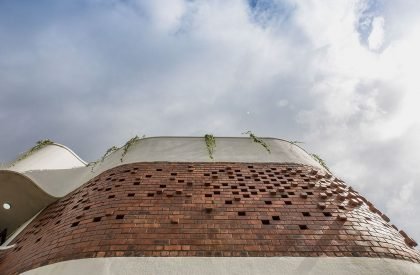

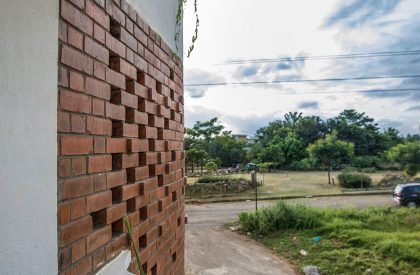

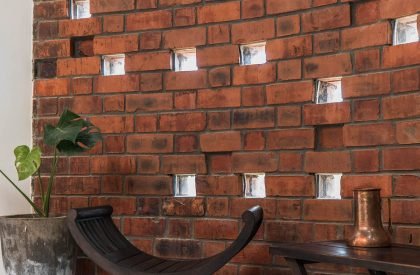

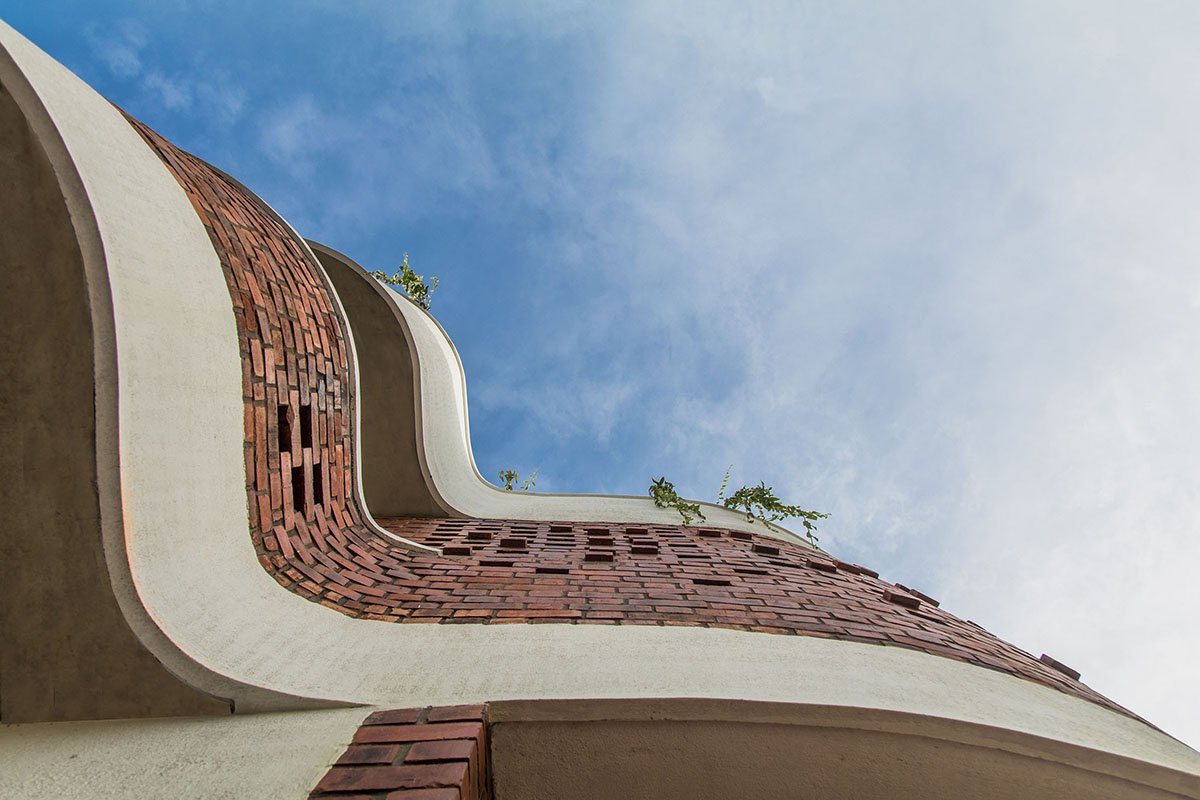

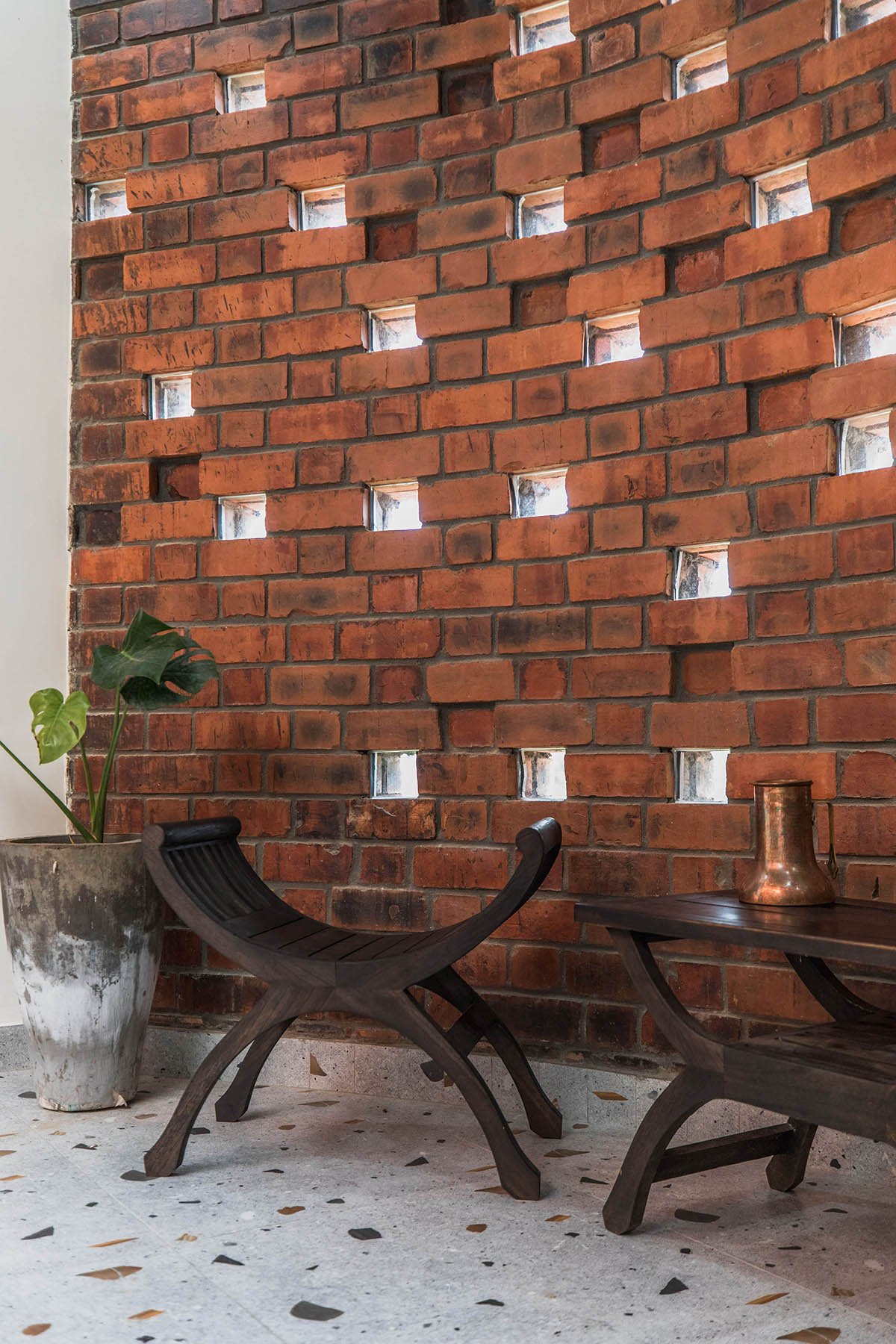

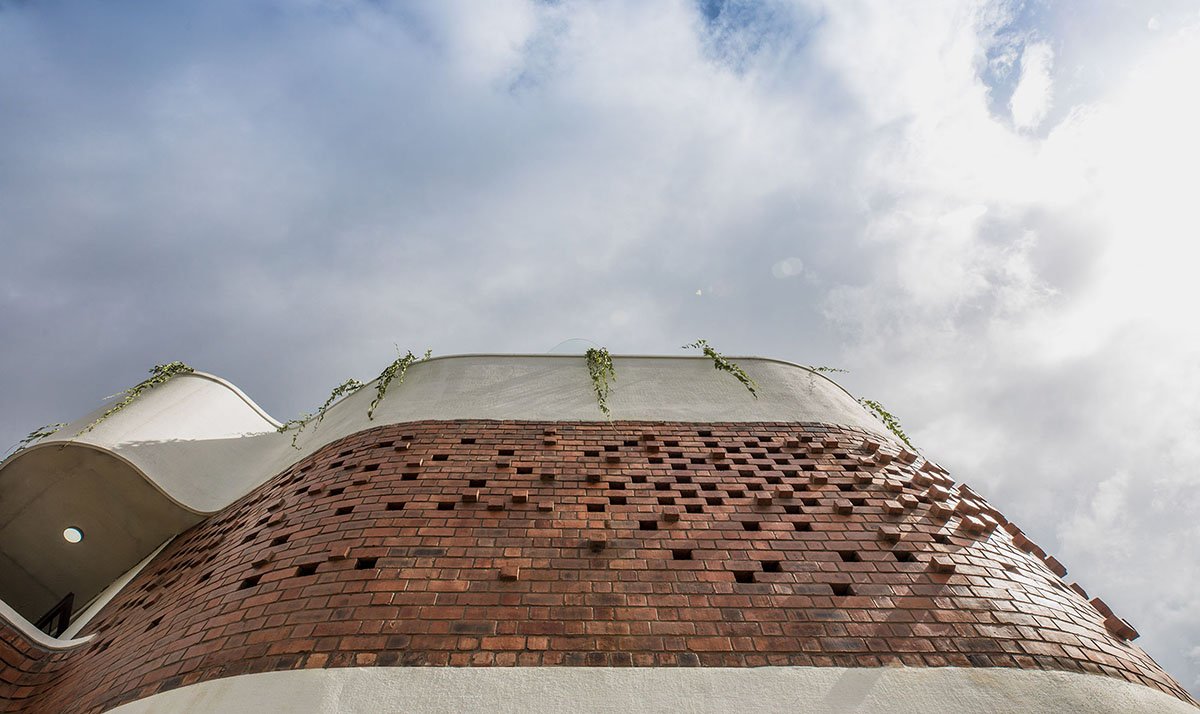

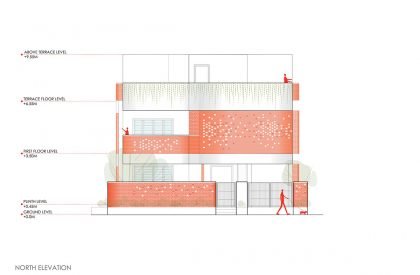

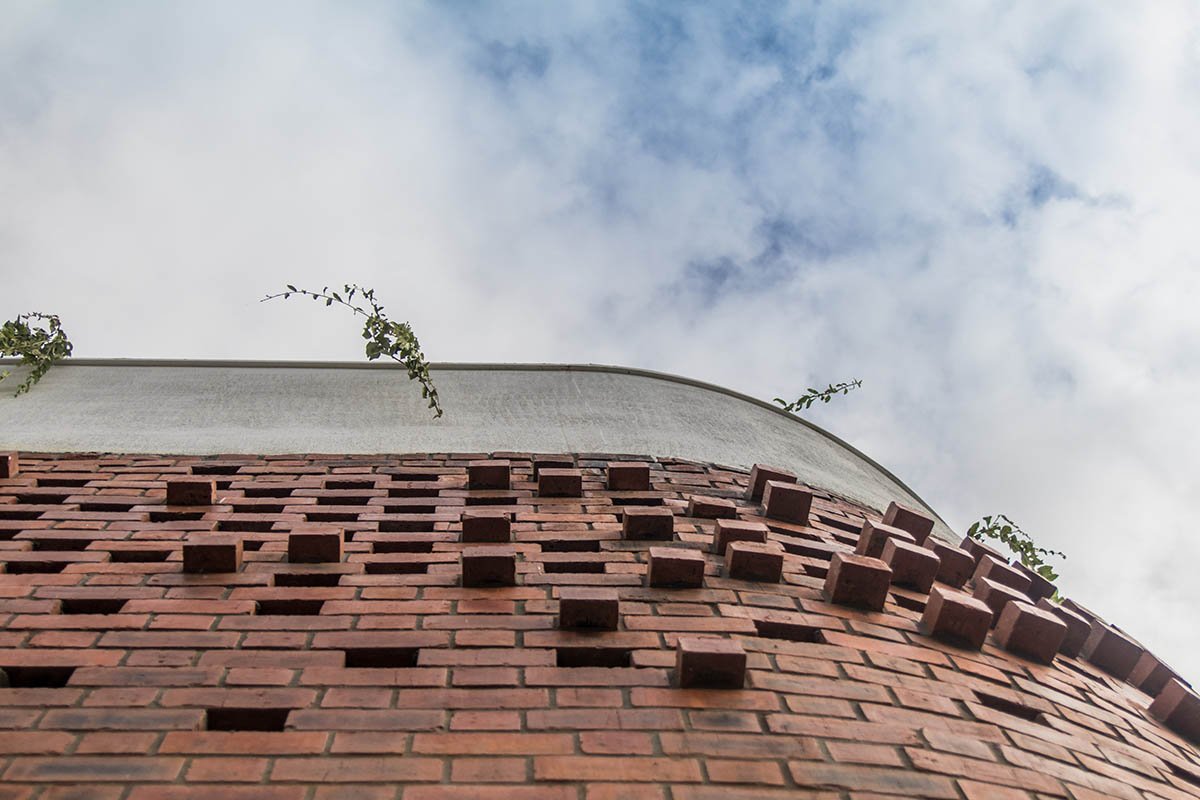

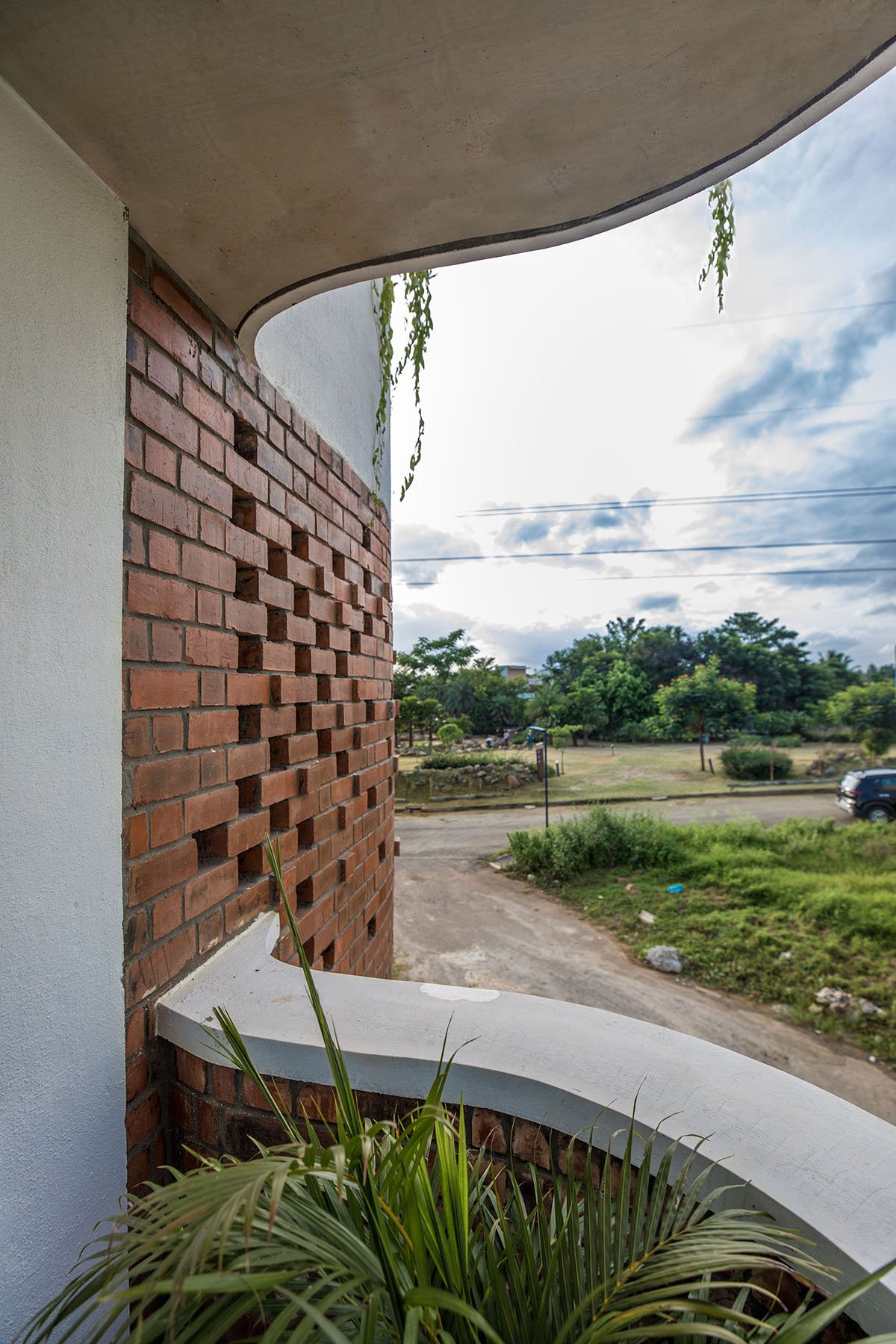

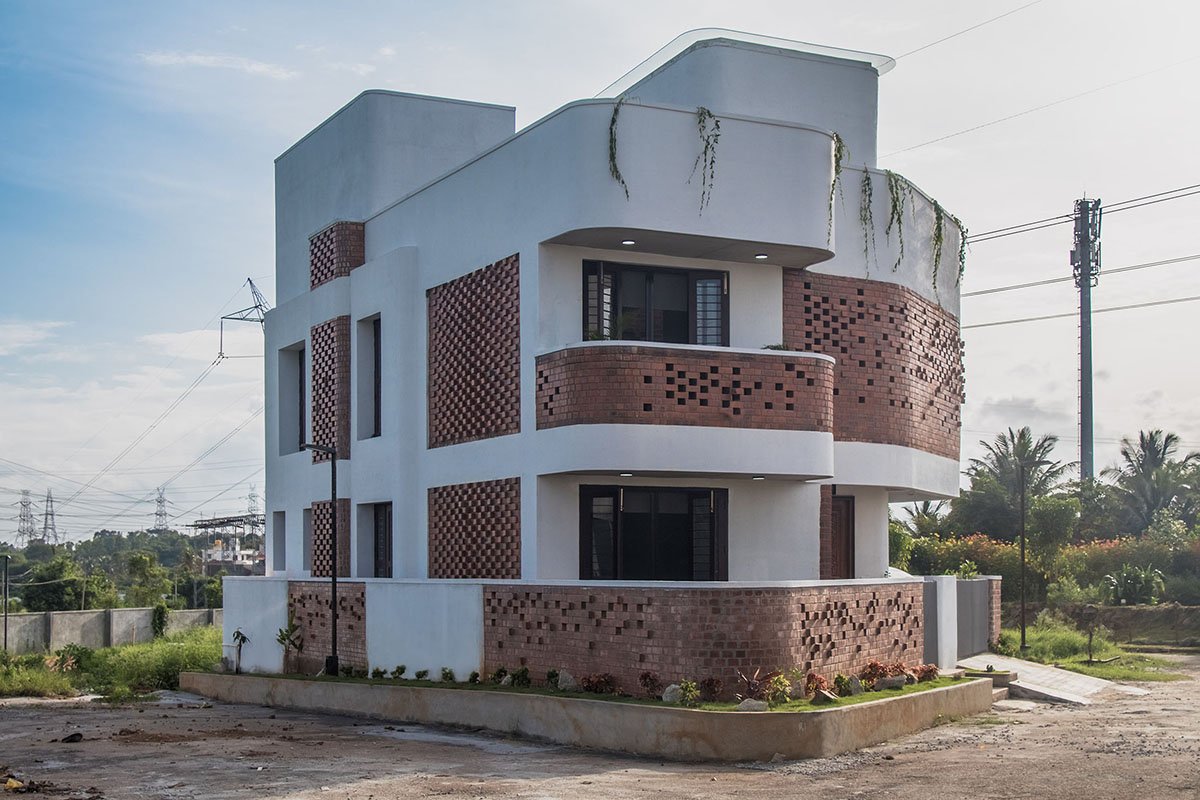

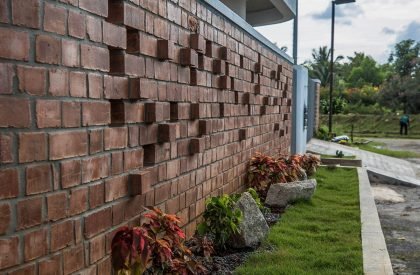

The project highlight is the parametrically crafted façade that acts as a porous skin for the first-floor family living and semi-outdoor space. The brick skin is carefully designed with the play of Brick projections and perforations envelopes the upper floor’s north and west sides. During the daytime, the brick projections, which are maximum towards the west side, help to cut down 50% of the harsh direct heat gain by self-shading the wall. And the perforations, which are maximum towards the north-side, help in daylight and natural ventilation. At the same time, the internal spaces get cooler air while passing through these brick perforations. The brick perforation gaps enveloping the family living area are fitted with clear glass to avoid entering insects and pests but allow the entry of natural daylight. The façade forms an interesting play of light and shadow on the exterior. During Nighttime, these perforations help to form a captivating pattern on the exterior, thus forming a Brick Lantern Effect.

The Brick Lantern House | Studio Biomorph
© Durjoy Chowdhury
The Brick Lantern House | Studio Biomorph
© Studio Biomorph

MATERIAL PALETTE

The material palette is kept simple and cohesive. Exposed Brick masonry is extensively used on the exterior and interiors. As a relief to the bricks, a white color texture wall came in place to create a sense of balance. As a cost-effective solution, an exposed concrete ceiling was preferred complimenting the earthy palette of exposed brick walls. The Mosaic patterned Flooring tiles throughout the interiors blend well with the rest of the rustic approach. All the furniture is kept simple and sensible, made of teak wood to compliment the design character of the interiors. The selection of plants and landscape elements were designated carefully to blend well with the context and architecture. The choice of these materials helps keep the spaces connected with local roots.

The Brick Lantern House | Studio Biomorph
© Durjoy Chowdhury
